Evaporative Emission Canister Purge Solenoid Valve Replacement

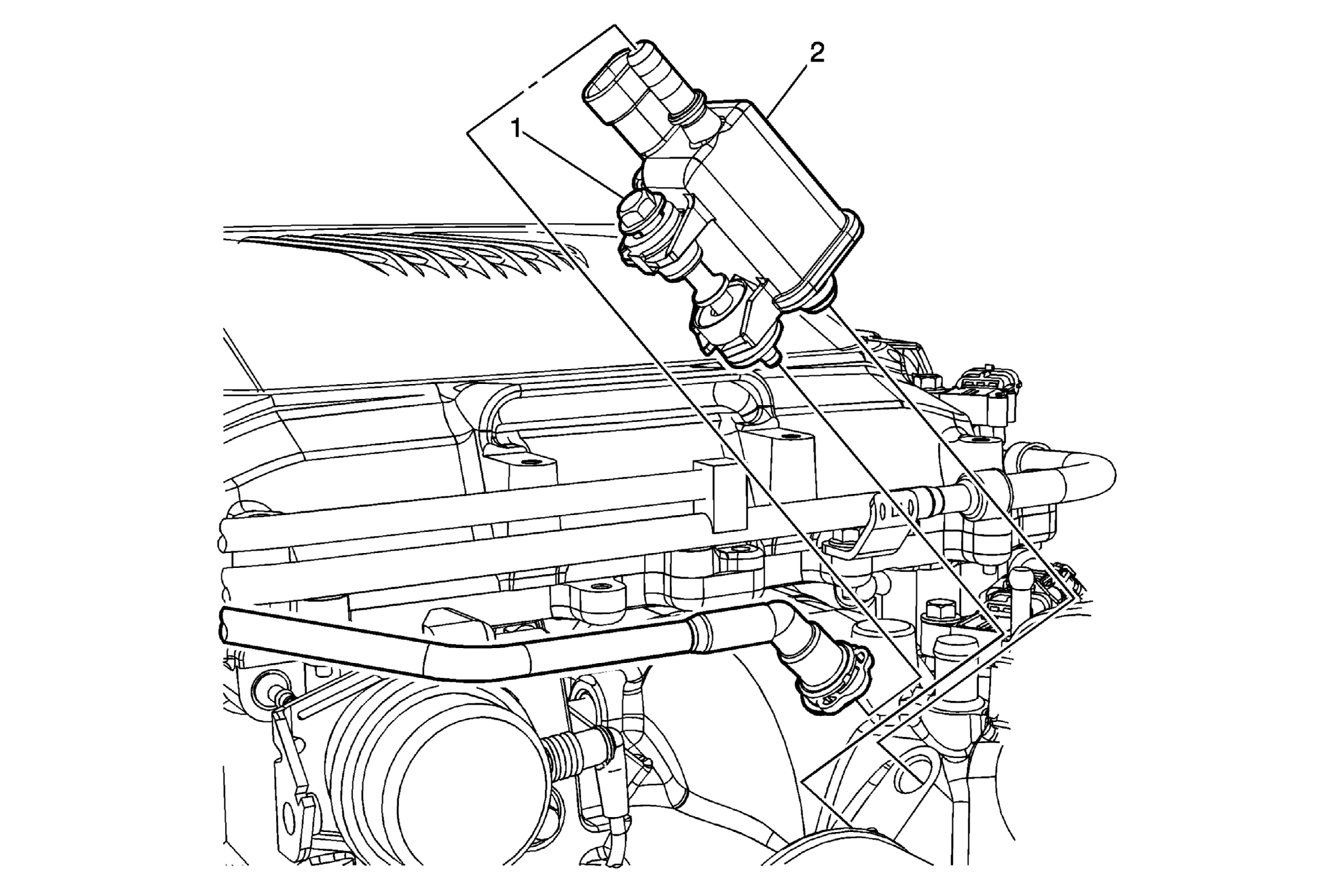

Fig 1: Identifying Evaporative Emission Canister Purge Solenoid Valve

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front manifold cover. Refer to Intake Manifold Cover Replacement - Front
1	Bolt CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
2	Evaporative Emission Canister Purge Valve Procedure Disconnect the EVAP canister purge valve harness connector. Disconnect the EVAP canister purge tube from the purge valve.

Callout

Component Name

Preliminary Procedure
Remove the front manifold cover. Refer to Intake Manifold Cover Replacement - Front

Bolt

CAUTION:

Tighten
10 N.m (89 lb in)

Evaporative Emission Canister Purge Valve

Procedure
