Charge Air Bypass Regulator Solenoid Valve Replacement

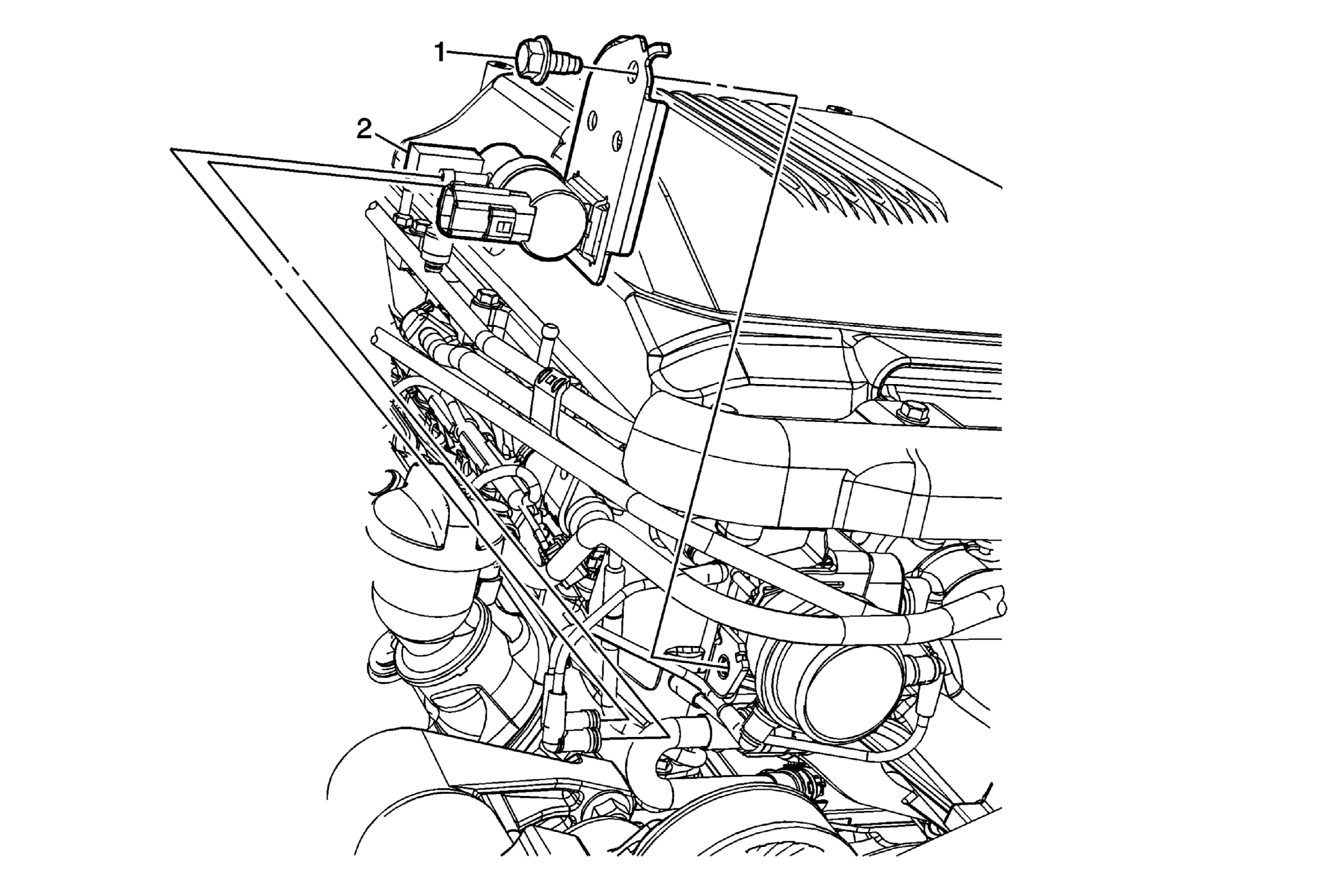

Fig 1: Identifying Charge Air Bypass Regulator Solenoid Valve

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front manifold cover. Refer to Intake Manifold Cover Replacement - Front .
1	Charge Air Bypass Regulator Solenoid Fastener CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
2	Charge Air Bypass Regulator Solenoid Procedure Disconnect the harness connector. Vacuum Pipe<p01>@Charge Air Bypass Regulator Solenoid Valve»Remove and DISCARD

Callout

Component Name

Preliminary Procedure
Remove the front manifold cover. Refer to Intake Manifold Cover Replacement - Front .

Charge Air Bypass Regulator Solenoid Fastener

CAUTION:

Tighten
10 N.m (89 lb in)

Charge Air Bypass Regulator Solenoid

Procedure
