Front Side Door Trim Panel Replacement (Coupe)

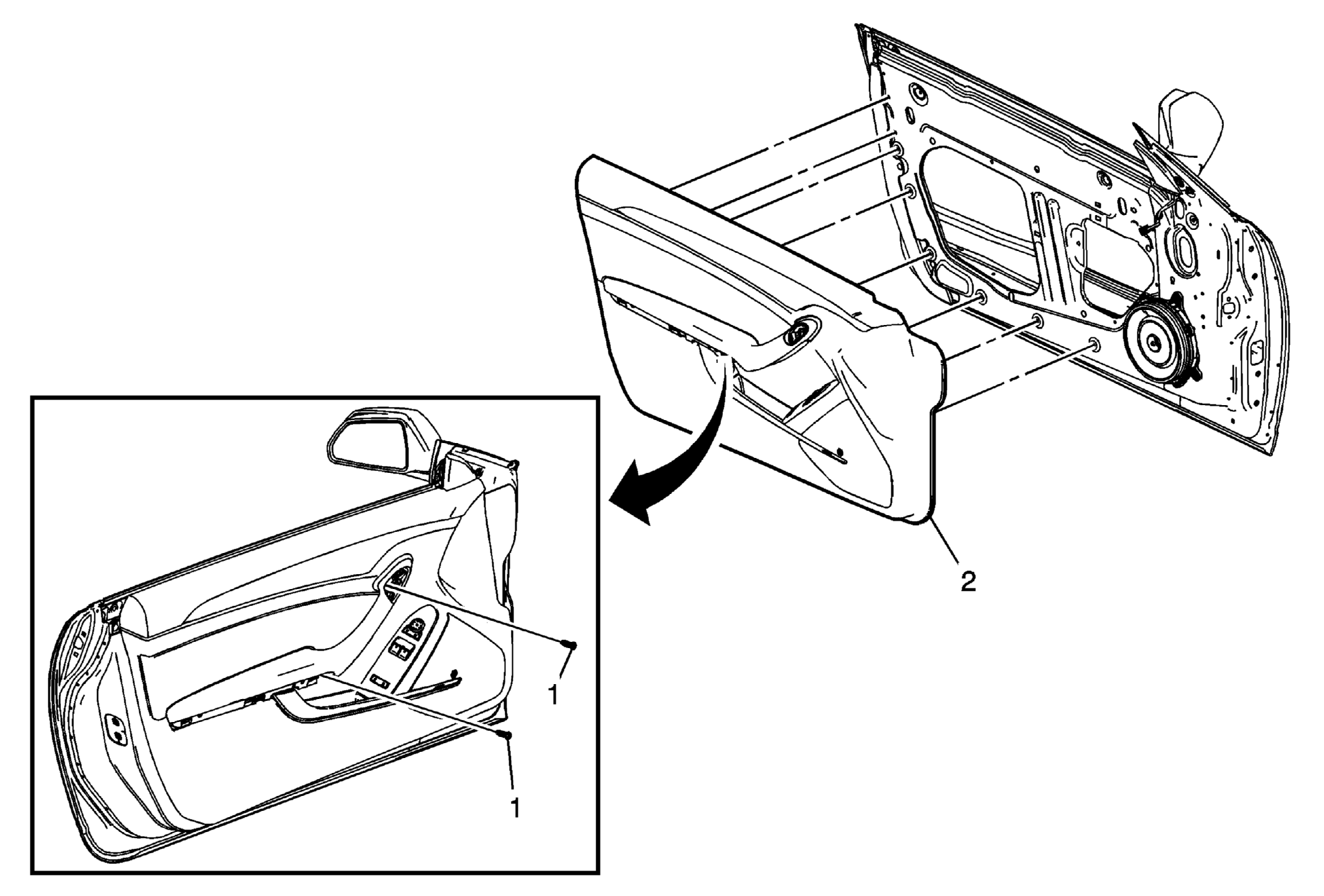

Fig 1: Front Side Door Trim Panel (Coupe)

GM2355074

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

Preliminary Procedures

Remove the front side door armrest lower finish cover. Refer to Front Side Door Armrest Lower Finish Cover Replacement (Coupe) .
Remove the door latch release switch bezel. Refer to Door Latch Release Switch Bezel Replacement (Coupe) .

1

Front Side Door Trim Panel Screw (Qty: 2)

CAUTION:

Refer to Fastener Caution .

Tighten
2 N.m (18 lb in)

2

Front Side Door Trim Panel

Procedure

Use a door trim tool or equivalent to aid in the removal of the door trim.
If door body side connector is pushed in or loose from collar, the collar should be replaced.
Refer to Control Module References for programming and setup information.
