Door Latch Release Switch Bezel Replacement (Coupe)

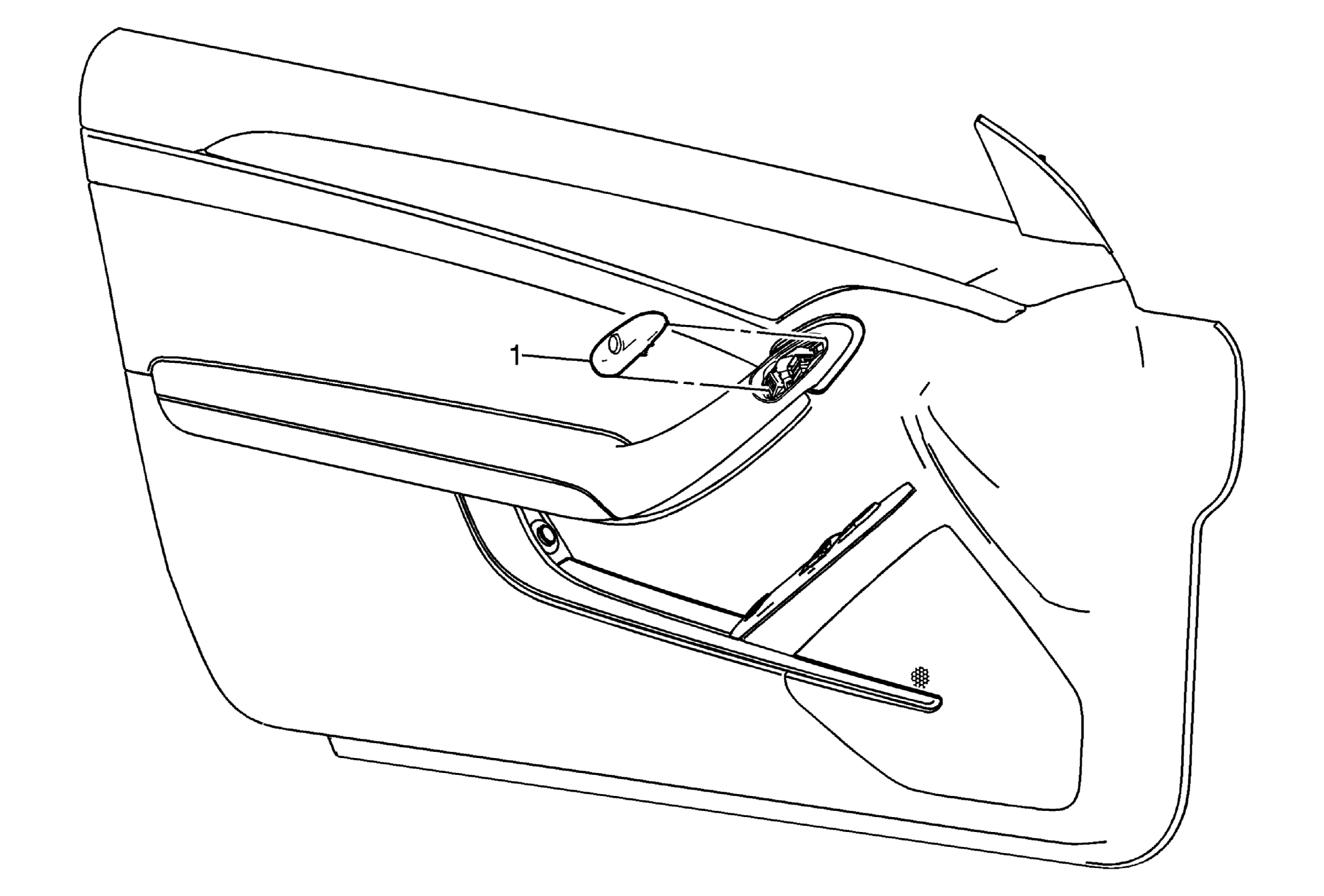

Fig 1: Door Latch Release Switch Bezel (Coupe)
GM2368121Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Door Latch Release Switch Bezel

Procedure

  1. Use a flat-bladed tool to release the bezel from the door trim.
  2. Disconnect the electrical connector.
