Body Side Front Lower Trim Panel Replacement (Coupe)

Preliminary Procedures

1. Remove the rear seat back cushion. Refer to Rear Seat Back Cushion Removal and Installation (Coupe) .
2. Remove the front side door sill trim plate. Refer to Front Side Door Sill Trim Plate Replacement (Coupe) .
3. Remove the body side rear window garnish molding. Refer to Body Side Window Rear Garnish Molding Replacement (Coupe) .
4. Remove the center pillar upper garnish molding. Refer to Center Pillar Upper Garnish Molding Replacement .

Procedure

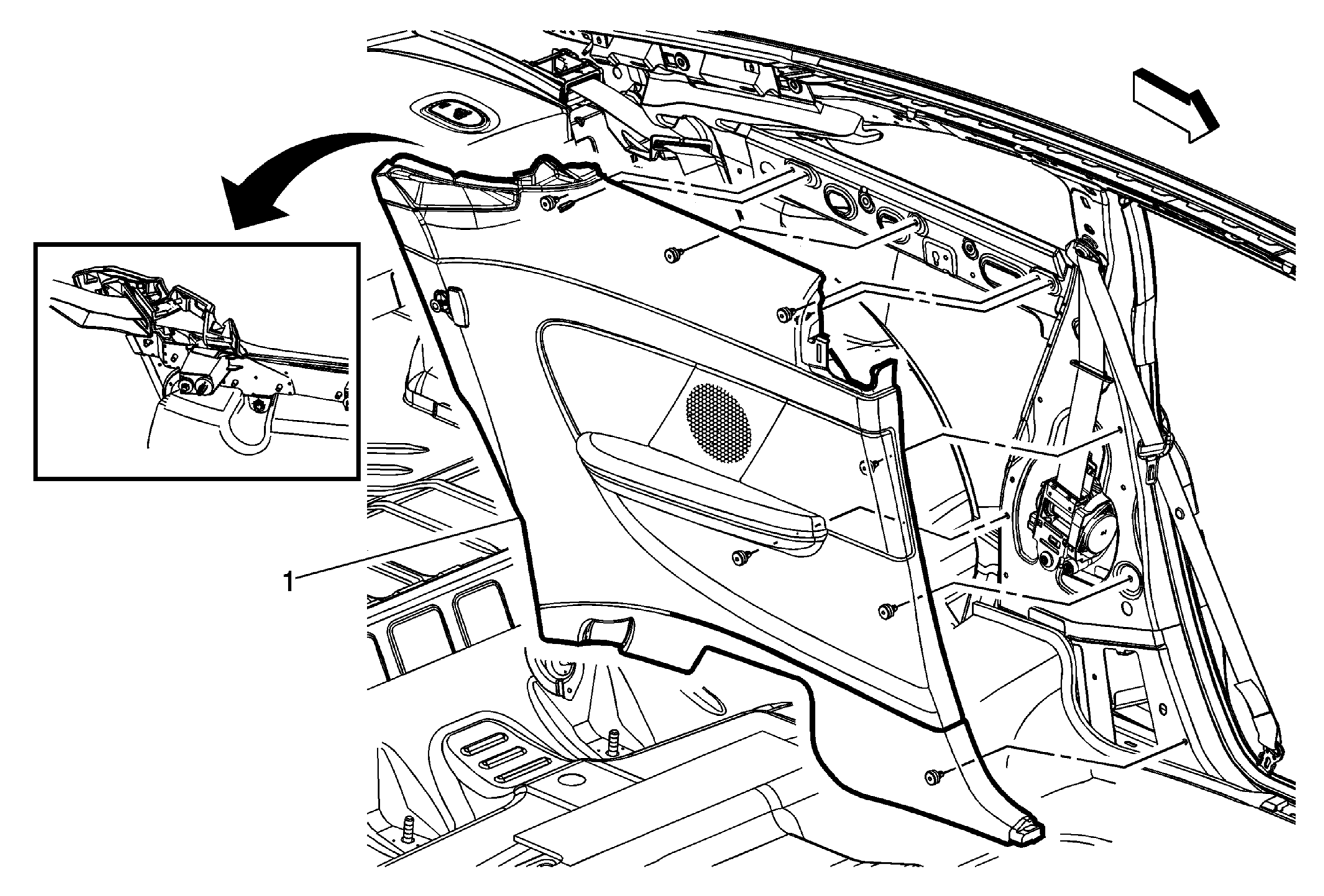

1. Release the wedge block from the escutcheon by disengaging plastic tabs with appropriate tool.
2. Disengage shoulder belt from the body side front lower trim panel.
3. Disconnect electrical connector.
