Rear Bumper Impact Bar Replacement (Coupe)

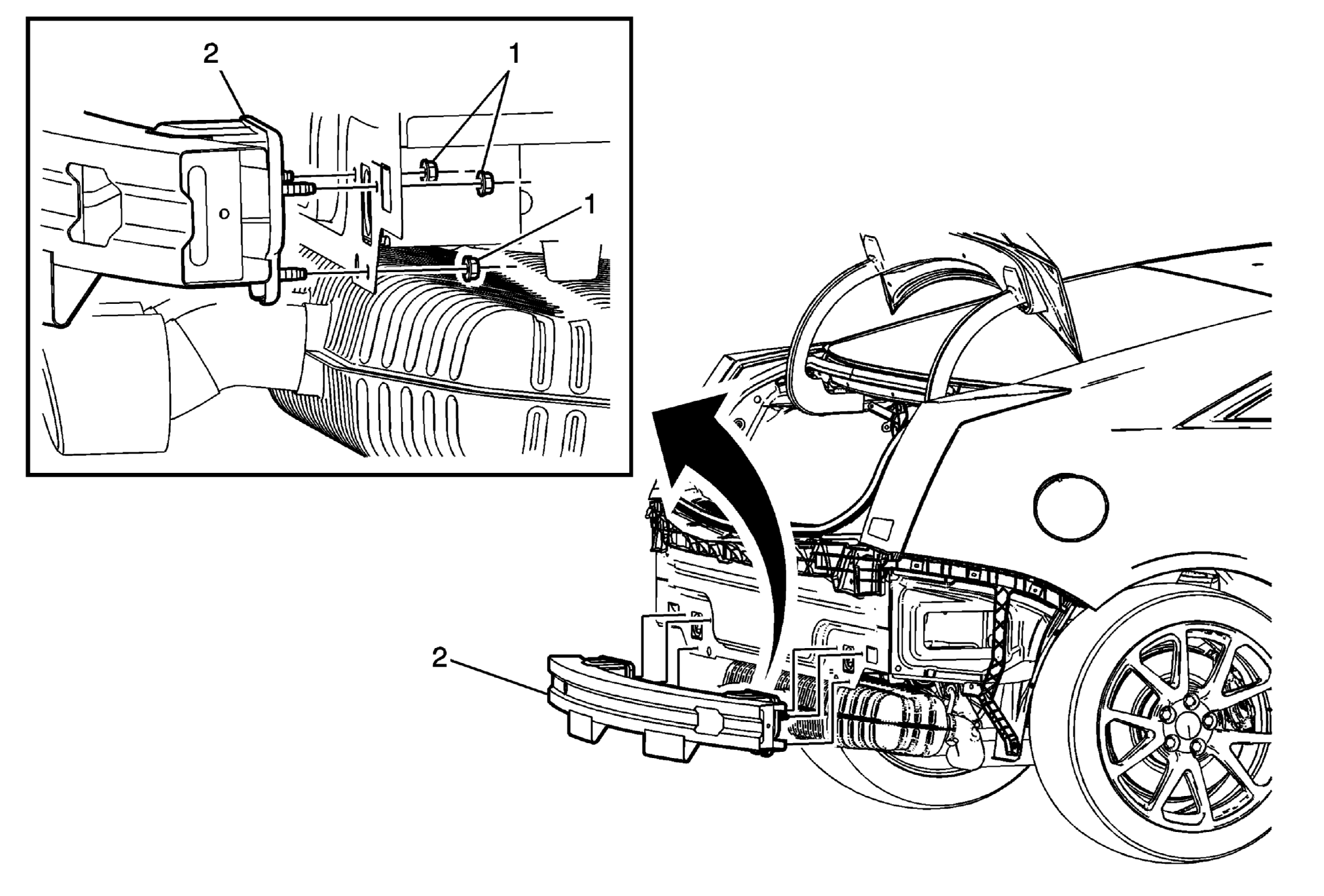

Fig 1: Rear Bumper Impact Bar & Nuts (Coupe)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the bumper fascia. Refer to Rear Bumper Fascia Replacement (Coupe) .
1	Rear Bumper Impact Bar Nut (Qty: 6) CAUTION: Refer to Fastener Caution . Tighten  50 N.m (37 lb ft)
2	Rear Bumper Impact Bar TIP:  Transfer components as necessary.
