Rear Bumper Fascia Replacement (Coupe)

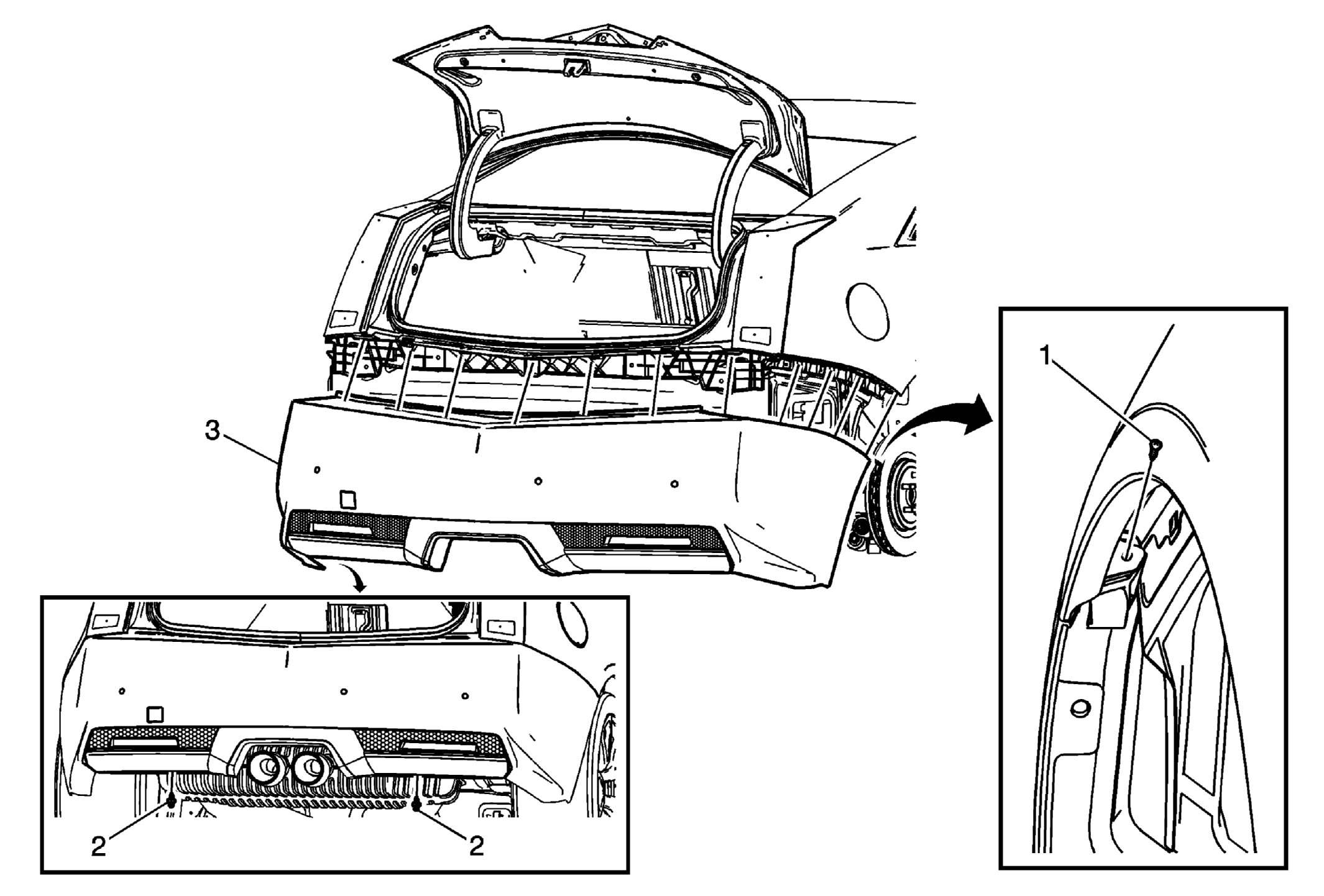

Fig 1: Rear Bumper Fascia Components (Coupe)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the rear wheelhouse liners. Refer to Rear Wheelhouse Liner Replacement (Coupe) . Disconnect the rear object sensor harness, right side inner fascia.
1	Rear Fascia Bolt CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
2	Rear Fascia Lower Push-In Retainer (Qty: 2)
3	Rear Fascia Procedure Carefully push a small nylon wedge between the fascia and the rear fascia retainers. Insert a small flat-bladed tool into the fascia slot and depress the snaps one at a time and pull on the fascia at the same time to gradually remove the fascia from the rear fascia retainers. Transfer parts as needed.
