Rear Wheelhouse Liner Replacement (Coupe)

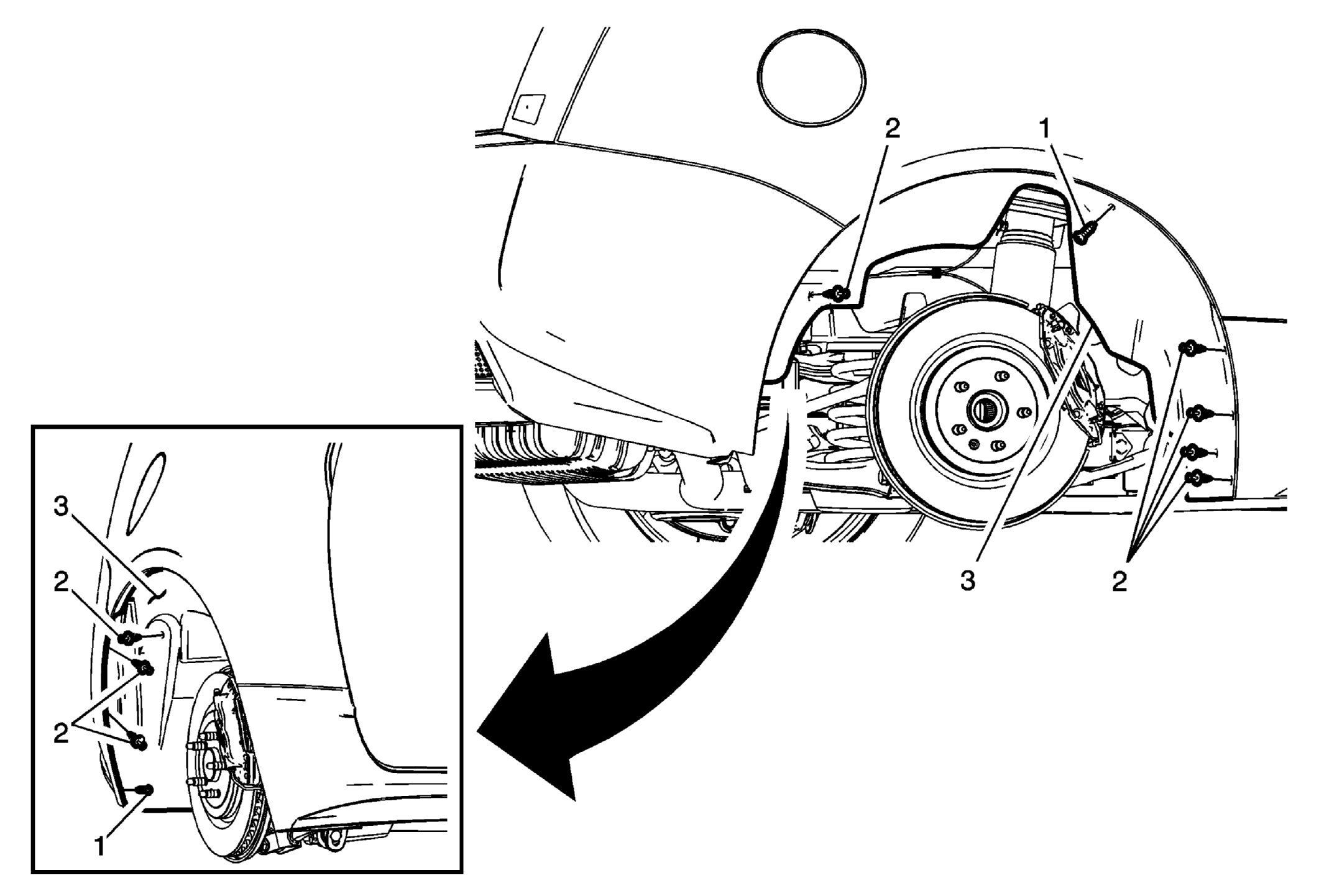

Fig 1: Rear Wheelhouse Panel Liner, Retainers & Screws

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
1	Rear Wheelhouse Panel Liner Screw (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten  3 N.m (27 lb in)
2	Rear Wheelhouse Panel Liner Push-In Retainer (Qty: 8)
3	Rear Wheelhouse Panel Liner
