Rear Bumper Fascia Insert Replacement (Coupe)

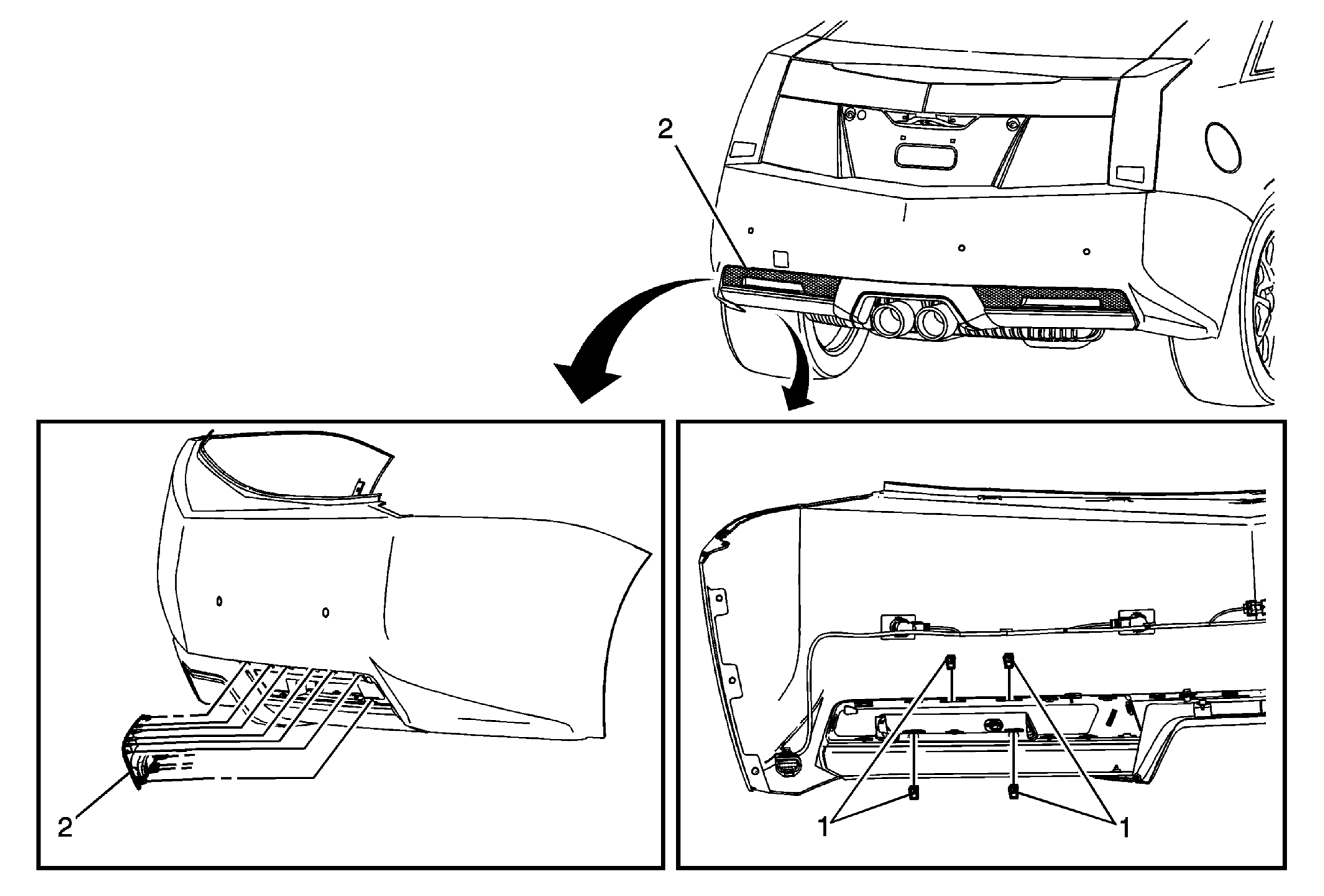

Fig 1: Rear Bumper Fascia Insert & Clips (Coupe)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the rear bumper fascia energy absorber. Refer to Rear Bumper Fascia Energy Absorber Replacement (Coupe) .
1	Rear Bumper Fascia Insert Clip (Qty: 4) Procedure  Use a small flat-bladed tool to release the clips.
2	Rear Bumper Fascia Insert
