Rear Bumper Fascia Energy Absorber Replacement (Coupe)

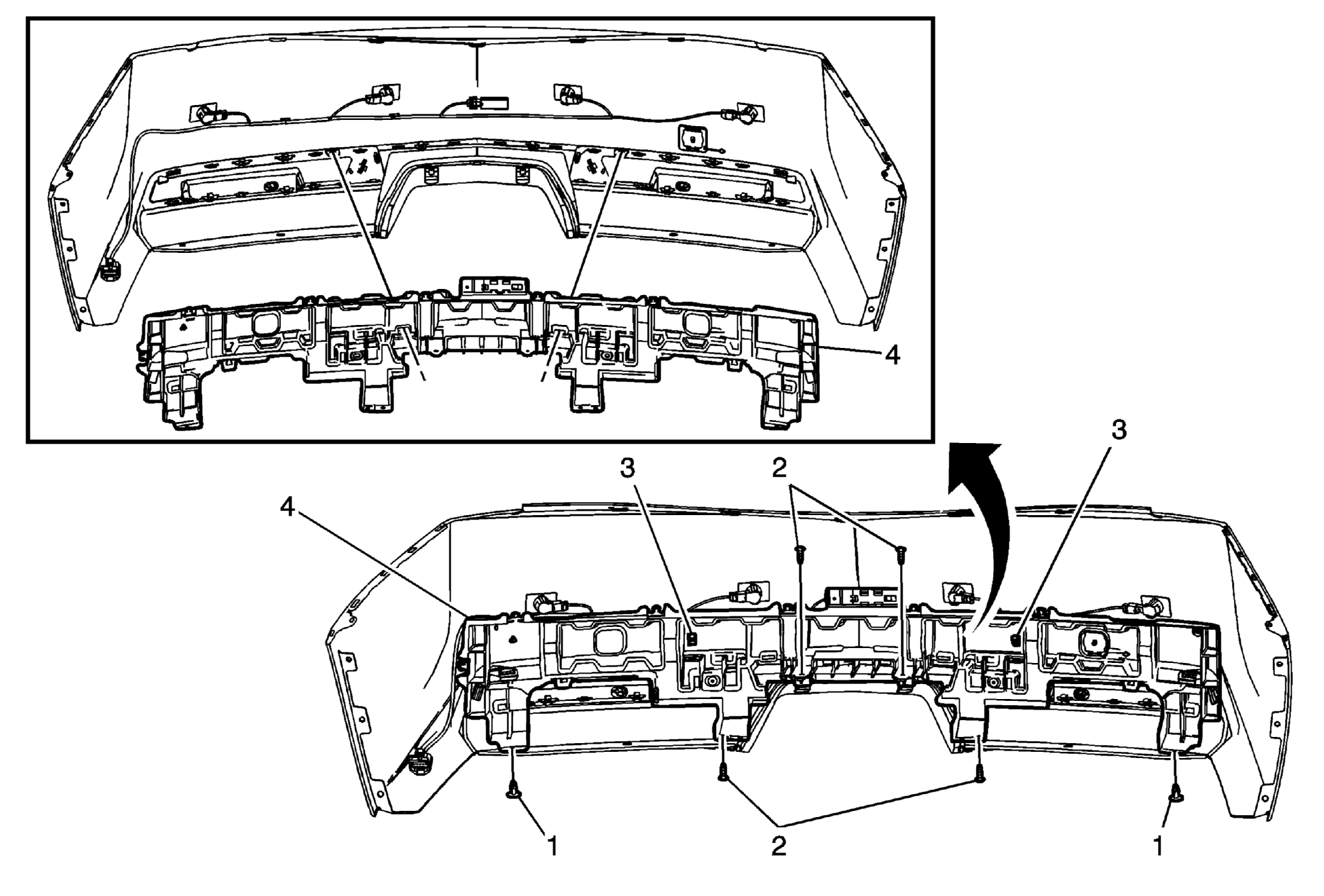

Fig 1: Rear Bumper Fascia Energy Absorber (Coupe)
GM2328603Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Remove the rear bumper fascia. Refer to Rear Bumper Fascia Replacement (Coupe) .
  2. Disconnect the rear object sensor harness from the rear bumper fascia energy absorber.
1 Rear Bumper Fascia Energy Absorber Push-In Retainer (Qty: 2)
2 Rear Bumper Fascia Energy Absorber Screw (Qty: 4)
CAUTION:

Refer to Fastener Caution .
3 Rear Bumper Fascia Energy Absorber Wedge Retainer (Qty: 2)
4 Rear Bumper Fascia Energy Absorber
