Rear Bumper Fascia Center Support Replacement (Coupe)

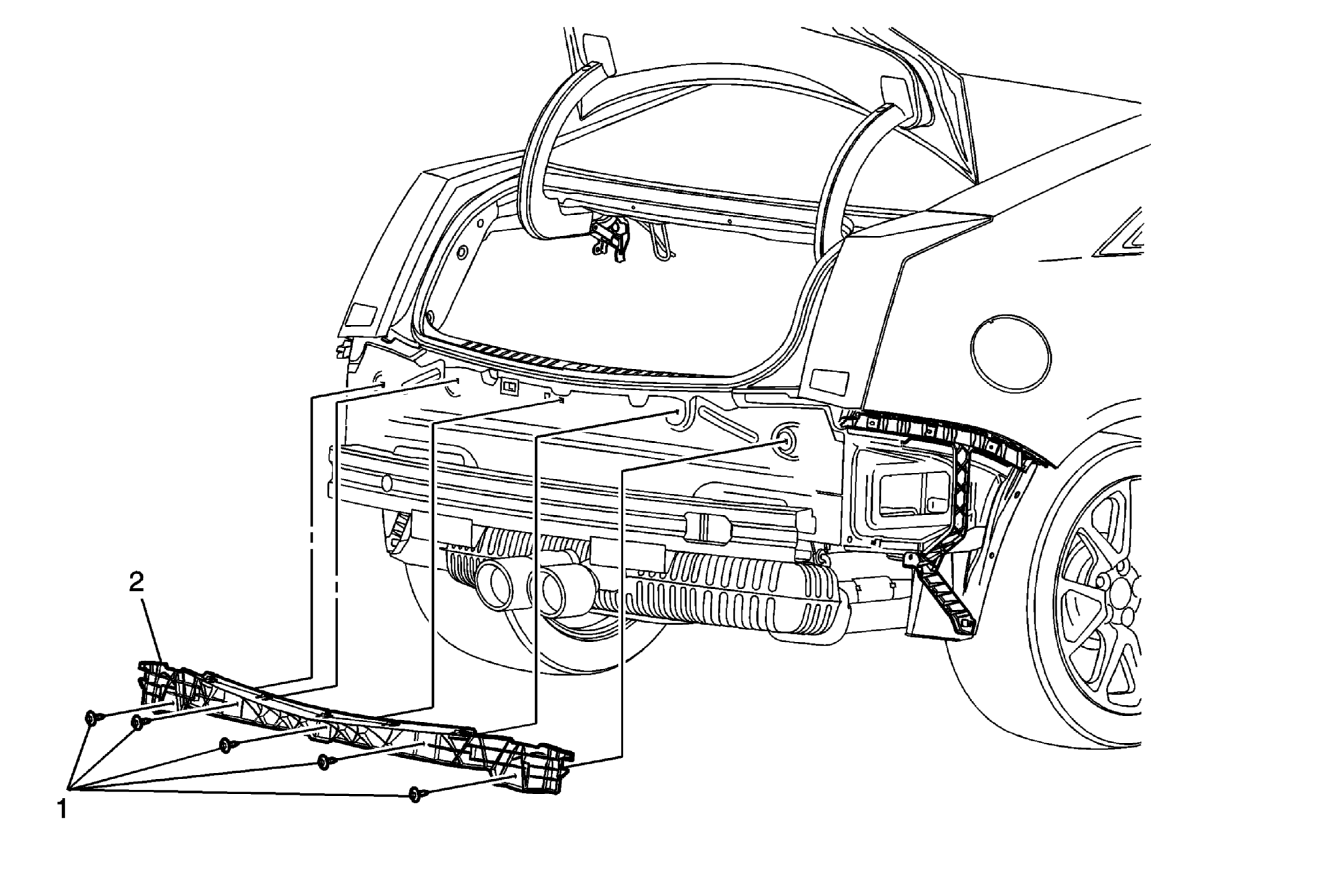

Fig 1: Rear Bumper Fascia Center Support (Coupe)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the rear bumper fascia. Refer to Rear Bumper Fascia Replacement (Coupe) .
1	Rear Bumper Fascia Center Support Bolt (Qty: 5) CAUTION: Refer to Fastener Caution . Tighten  2 N.m (18 lb in)
2	Rear Bumper Fascia Center Support
