Rear Bumper Fascia Bracket Replacement - Side (Coupe)

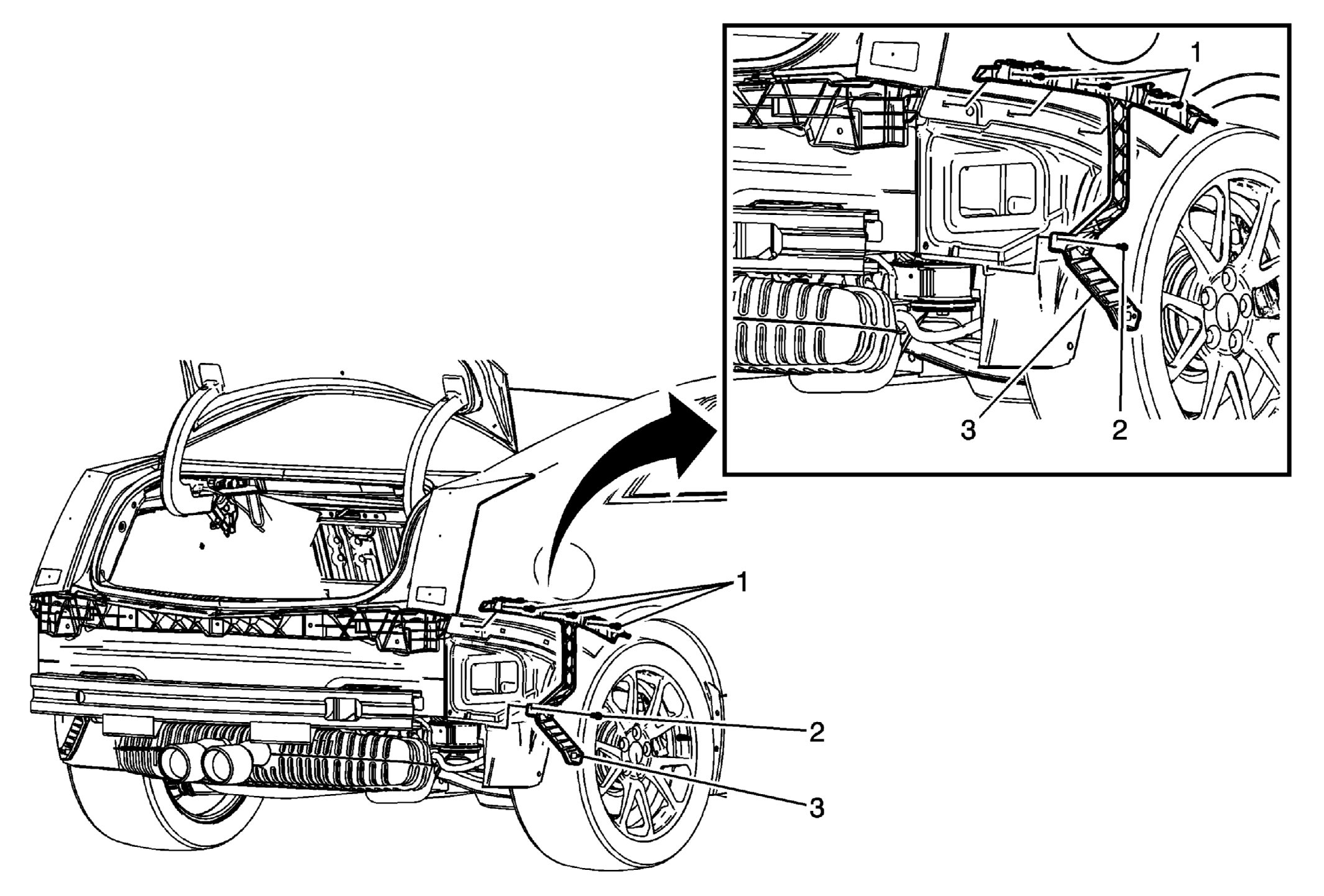

Fig 1: Rear Bumper Fascia Bracket - Side (Coupe)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the rear bumper fascia. Refer to Rear Bumper Fascia Replacement (Coupe) .
1	Rear Bumper Fascia Bracket Side Bolt (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten  10 N.m (89 lb in)
2	Rear Bumper Fascia Bracket Side Bolt Tighten  10 N.m (89 lb in)
3	Rear Bumper Fascia Bracket Side
