Rear Seat Armrest Compartment Door Replacement

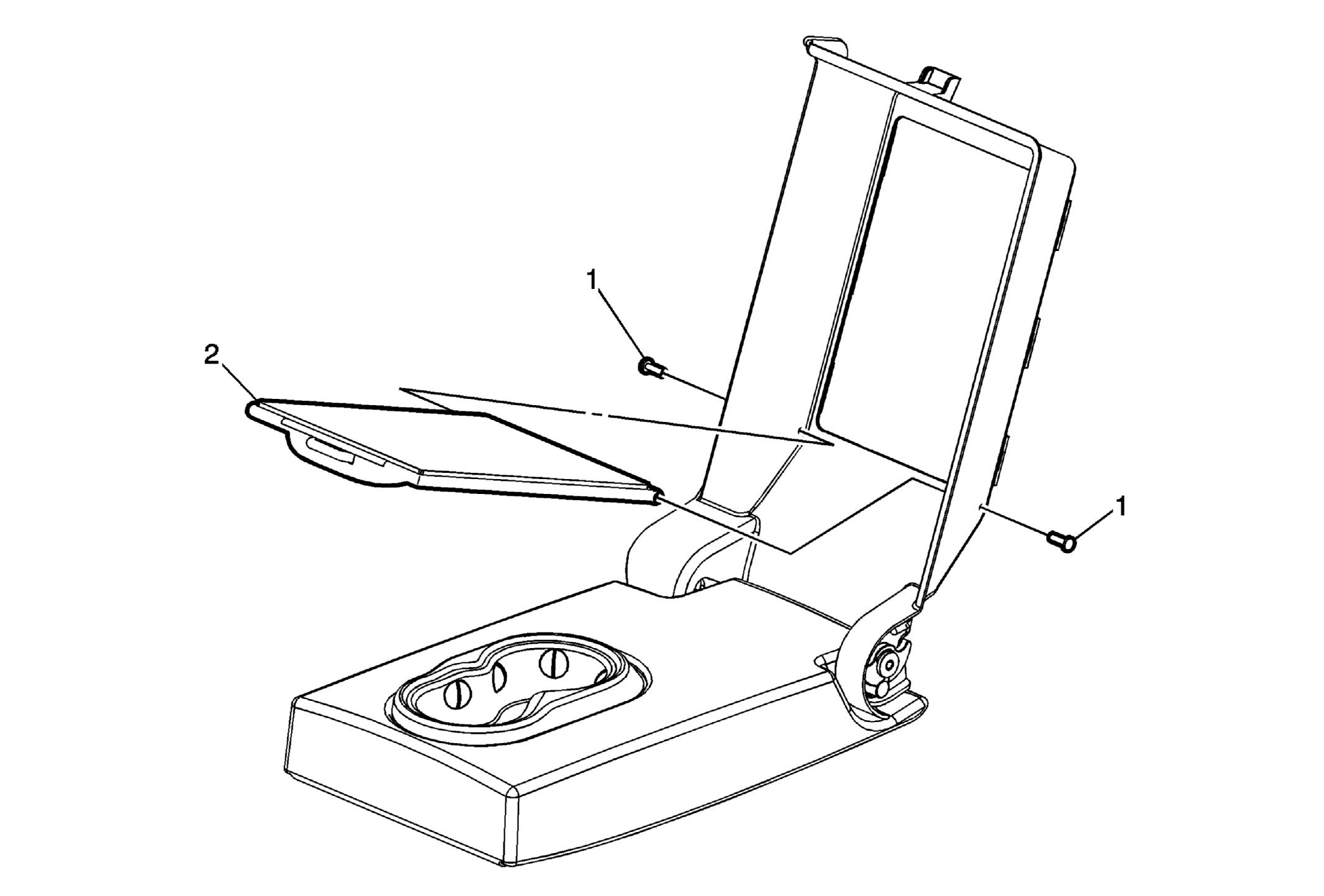

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the rear seat armrest. Refer to Rear Seat Armrest Replacement (With AM9) Rear Seat Armrest Replacement (Without AM9) . |
|
| 1 | Rear Seat Armrest Compartment Door Retainer (Qty: 2) Procedure Use a flat-bladed tool to gently release the retainers from the armrest assembly. |
| 2 | Rear Seat Armrest Compartment Door Procedure Remove the armrest compartment door by pulling forward on the compartment door handle. |
