Driver or Passenger Seat Head Restraint Guide Replacement (W2E)

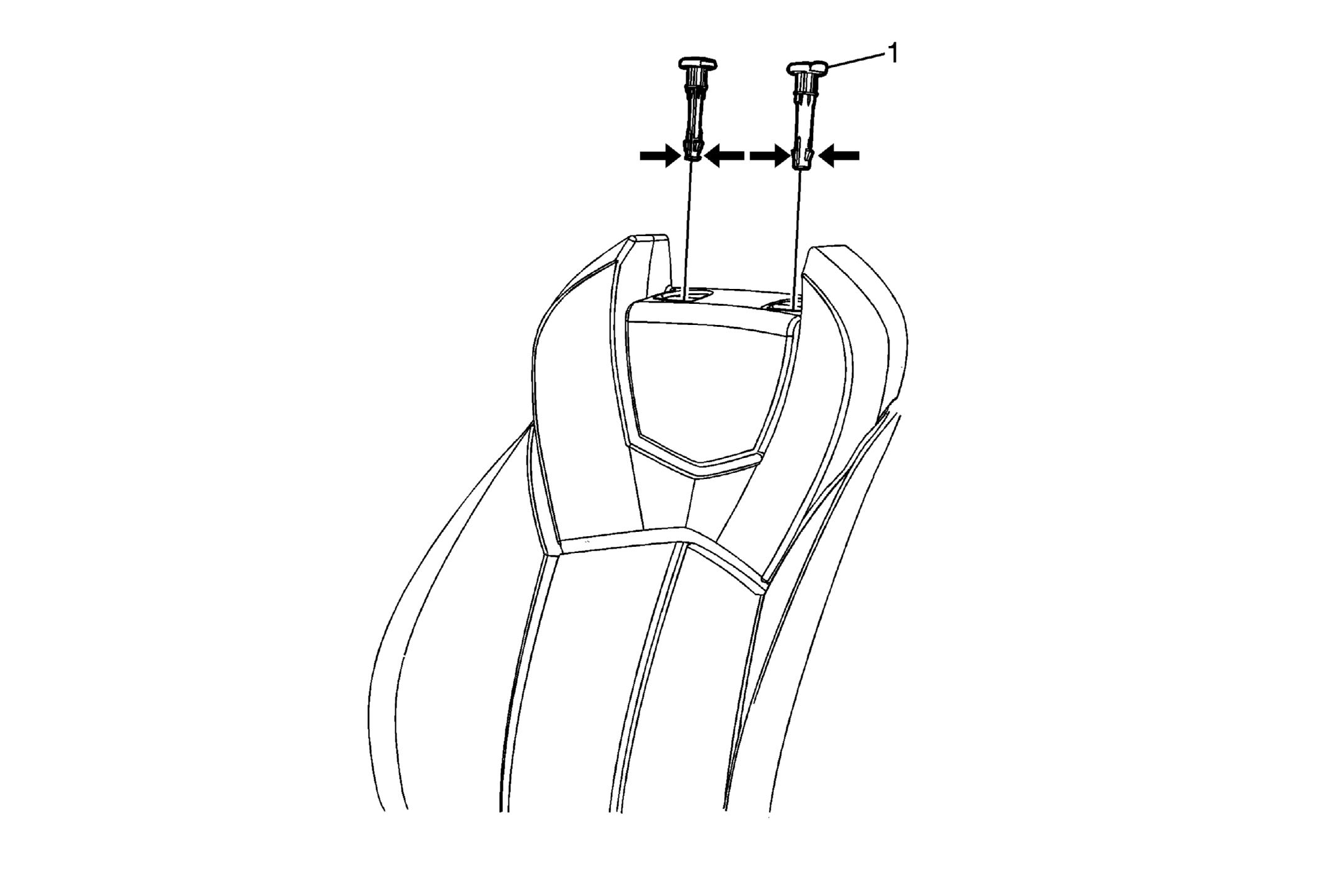

Fig 1: Identifying Front Seat Head Restraint Guide (W2E)

GM2087634

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

Preliminary Procedures

Remove the front seat back filler panel. Refer to Front Seat Back Cushion Finish Panel Replacement (W2E) .
Remove the front seat head restraint. Refer to Driver or Passenger Seat Head Restraint Replacement (W2E) .

1

Front Seat Head Restraint Guide (Qty: 2)

Procedure

Press inward on the tabs located at the bottom of the head restraint guides with a flat-bladed tool, then push upward to remove.
Note the location and orientation of each guide for installation purposes.
Use new guides for installation.
