Driver or Passenger Seat Head Restraint Replacement (W2E)

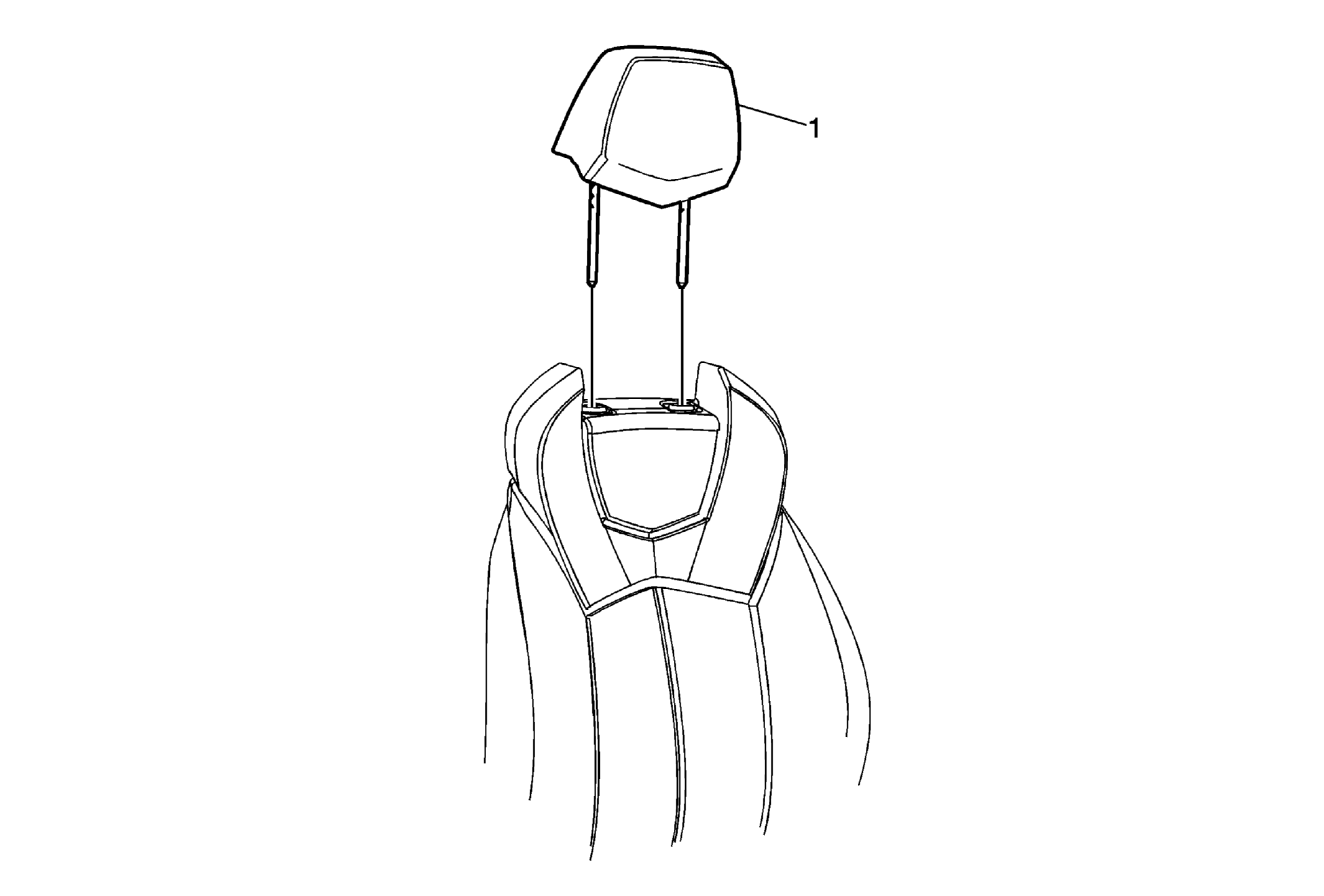

Fig 1: Identifying Driver Or Passenger Seat Head Restraint (W2E)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Front Seat Head Restraint Procedure Depress the large button on the head restraint guide and raise the head restraint to the full up position. Depress the small button on the opposite head restraint guide and pull upward to remove from the seat.
