Driver or Passenger Seat Cushion Frame Replacement (W2E)

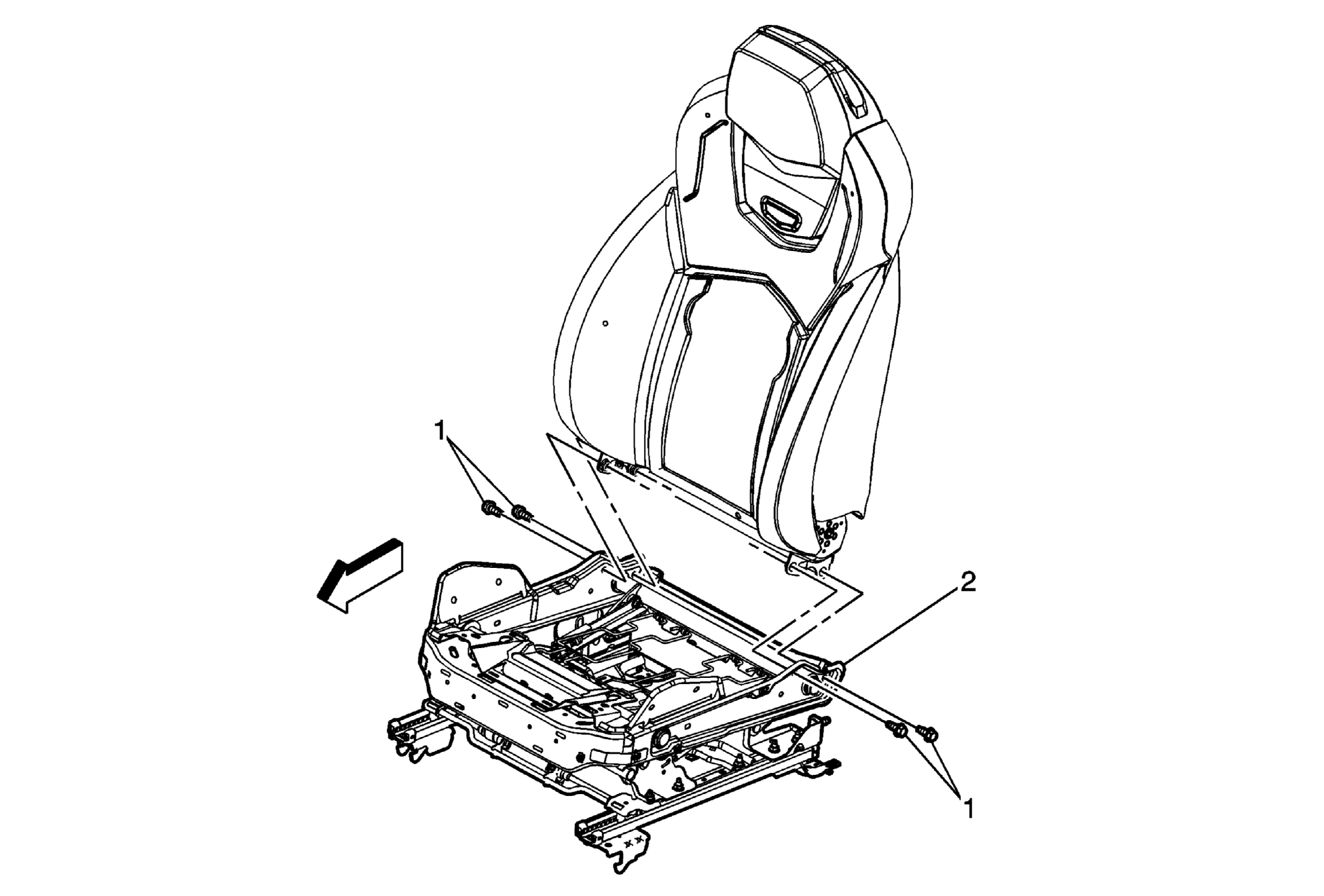

Fig 1: Identifying Driver Or Passenger Seat Cushion Frame (W2E)

GM2177394

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

Preliminary Procedure

Remove the front seat. Refer to Front Seat Removal and Installation - Bucket (W2E) .
Remove the front seat cushion cover and pad. Refer to Front Seat Cushion Cover and Pad Replacement (W2E) .
Remove the front seat adjuster switch bezel. Refer to Front Seat Adjuster Switch Bezel Replacement (W2E) .
Remove the front seat inner recliner finish cover. Refer to Driver or Passenger Seat Inner Recliner Finish Cover Replacement (W2E) .

1

Front Seat Back Cushion Frame Bolt (Qty: 4)

CAUTION:

Refer to Fastener Caution .

Tighten
50 N.m (37 lb ft)

2

Front Seat Cushion Frame

Procedure

Disconnect electrical connectors as needed.
If replacing with a new front seat cushion frame, transfer components as necessary.
