Driver or Passenger Seat Adjuster Finish Cover Replacement

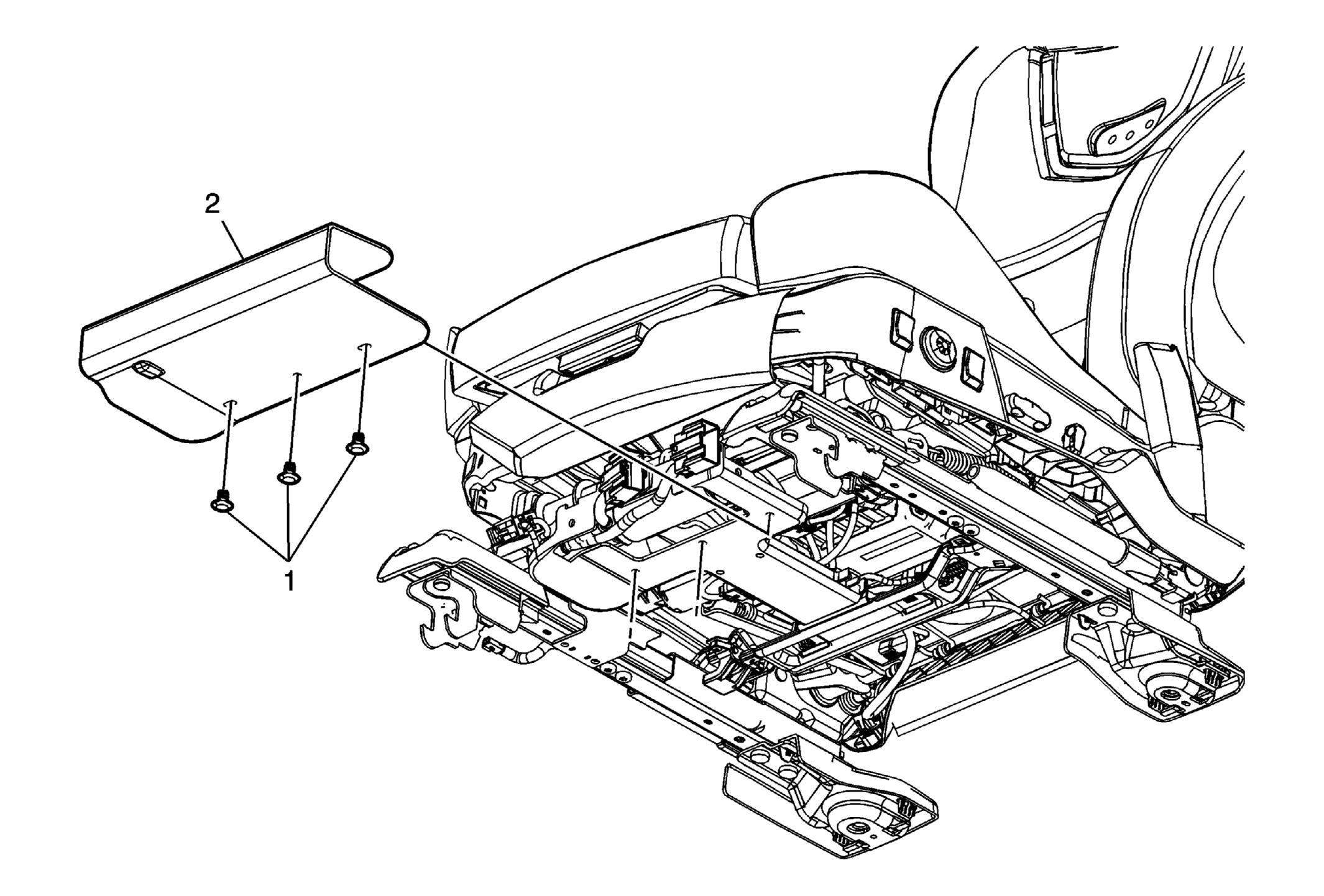

Fig 1: Identifying Driver Or Passenger Seat Adjuster Finish Cover

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the front seat. Refer to Front Seat Removal and Installation - Bucket (AQ9) Front Seat Removal and Installation - Bucket (W2E) .
1	Seat Adjuster Finish Cover Retainer (Qty: 3)
2	Seat Adjuster Finish Cover TIP:  After removing retainers, pull forward on the velcro removing it from the seat.
