Front Side Door Replacement (Coupe)

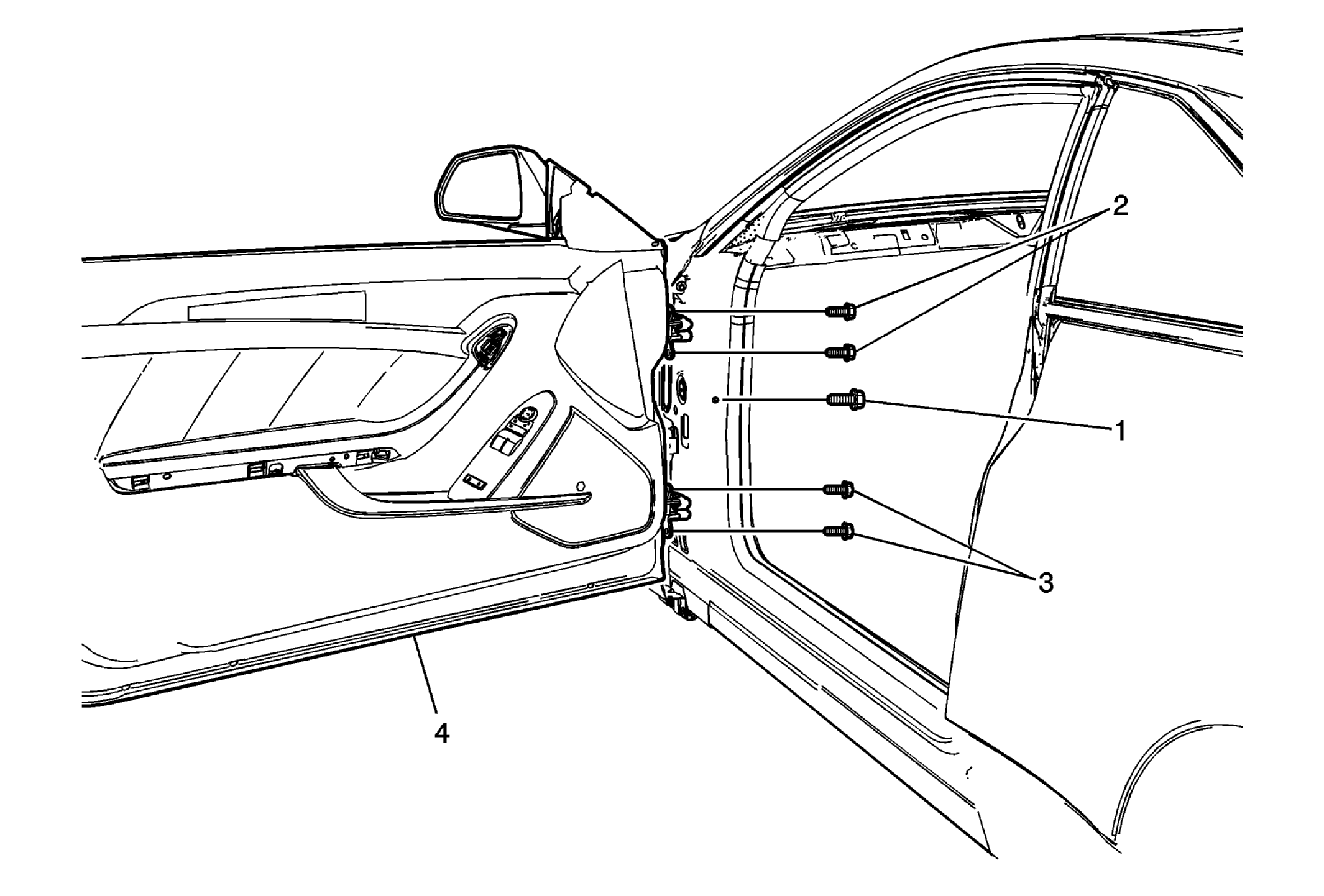

Fig 1: Front Side Door & Components (Coupe)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: In order to prevent SIR deployment, personal injury, or unnecessary SIR system repairs, do not strike the door or the door pillar in the area of the side impact sensor (SIS). Turn OFF the ignition and remove the key when performing service in the area of the SIS. Preliminary Procedures Disable the supplemental inflatable restraint (SIR) system. Refer to SIR Disabling and Enabling . Remove the front door trim panel. Refer to Front Side Door Trim Panel Replacement (Coupe) .
1	Front Side Door Check Link Bolt to Body CAUTION: Refer to Fastener Caution . Procedure Remove the water deflector. Disconnect the door electrical connector. Support the door before removing the hinge bolts. With an assistant, remove the door. Tighten 22 N.m (16 lb ft)
2	Front Side Door Upper Hinge (Qty: 2) Tighten 33 N.m (24 lb ft)
3	Front Side Door Lower Hinge (Qty: 2) Tighten 33 N.m (24 lb ft)
4	Front Side Door Assembly Procedure When replacing the door it is necessary to transfer all of the internal components.
