Air Cleaner Outlet Duct Replacement (LFX)
WARNING: This page is about a different variant/trim than selected.

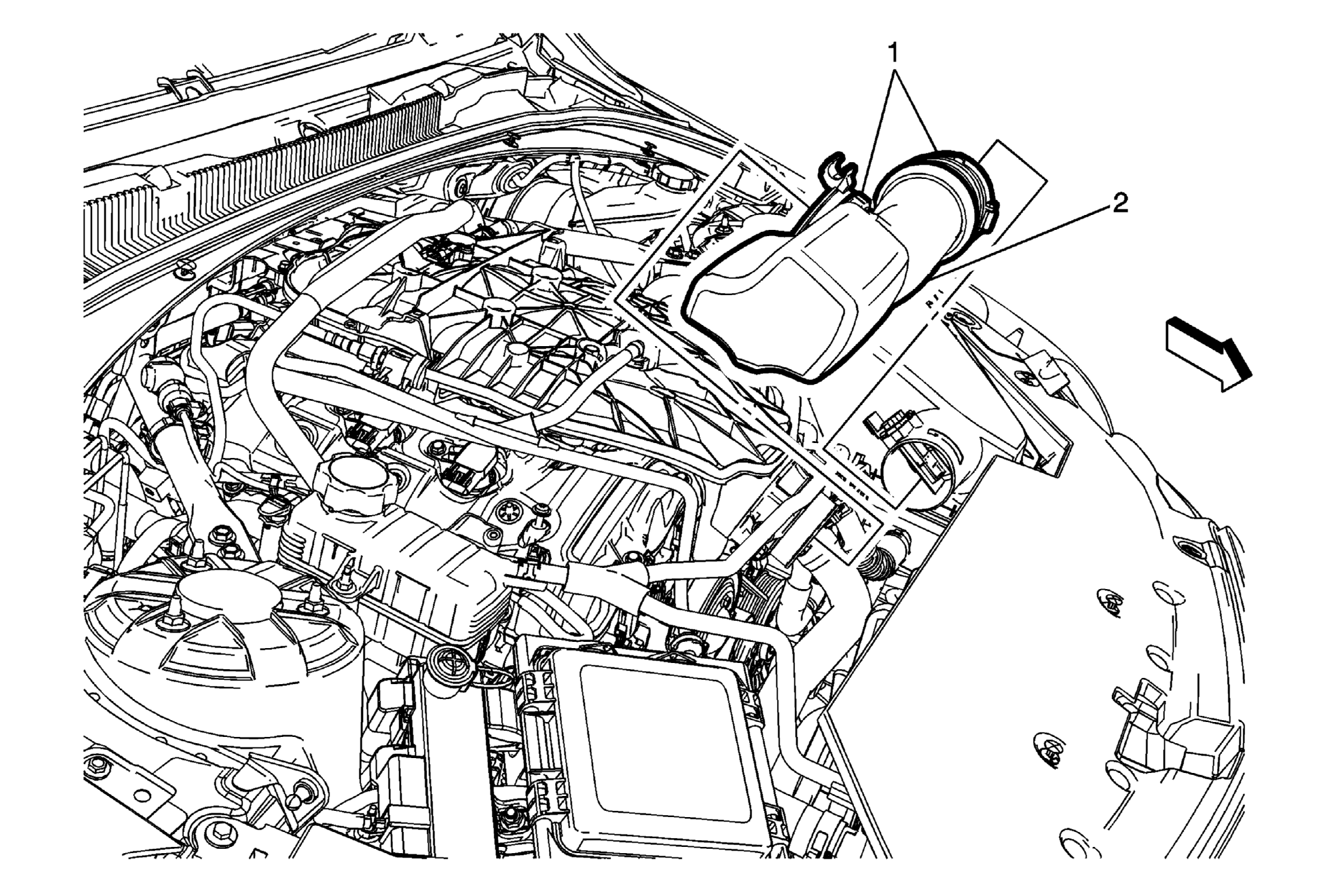

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement (LFX) |
|
| 1 | Air Cleaner Outlet Duct Clamps (Qty: 2)
CAUTION:
Refer to Fastener Caution . |
| 2 | Air Cleaner Outlet Duct Procedure Disconnect the surge tank inlet hose from the outlet duct. |
