Intake Manifold Cover Replacement (LFX)
WARNING: This page is about a different variant/trim than selected.
Courtesy of GENERAL MOTORS COMPANY

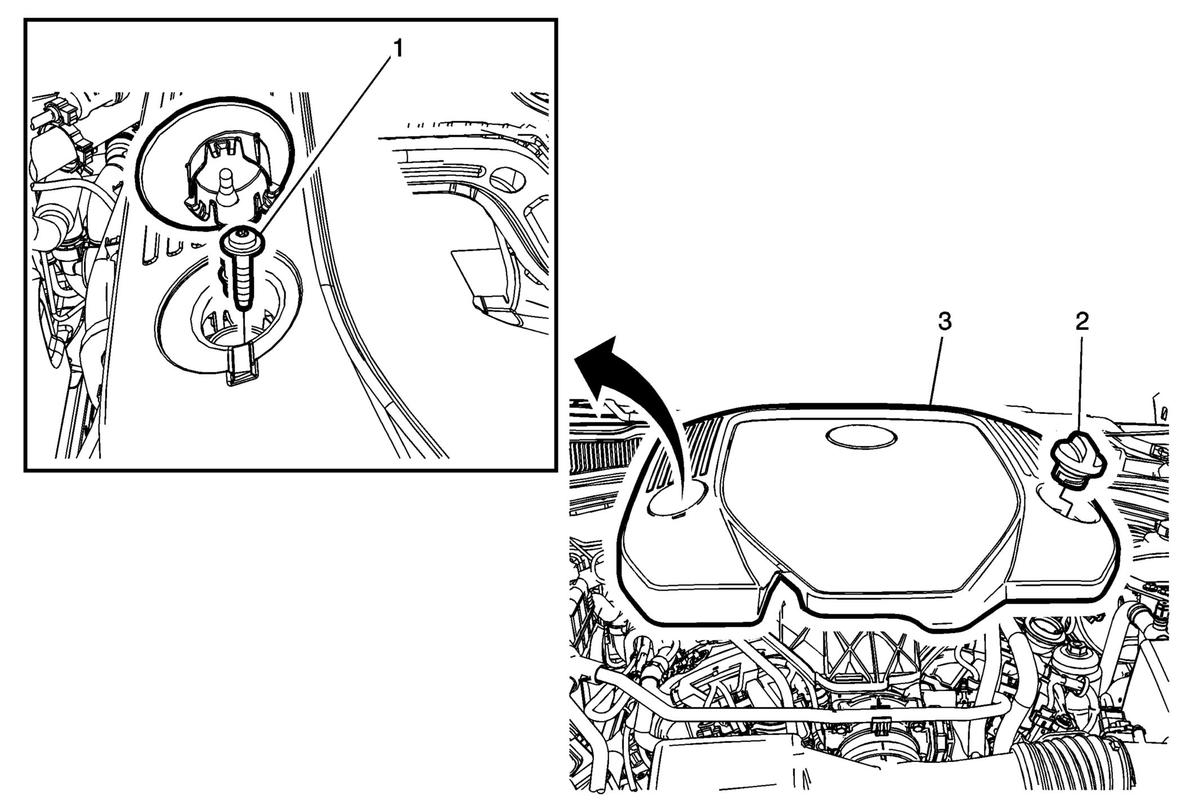

| Callout |
Component Name |
| 1 |
Intake Manifold Cover Fastener
Procedure
Flip open the access cover.
Tighten
9 N.m (80 lb in) |
| 2 |
Oil Cap
Procedure
Remove the oil cap before removing the intake manifold cover. |
| 3 |
Intake Manifold Cover
Procedure
Pull the intake manifold cover upward to remove. |
