Air Cleaner Assembly Replacement (LFX)

WARNING: This page is about a different variant/trim than selected.

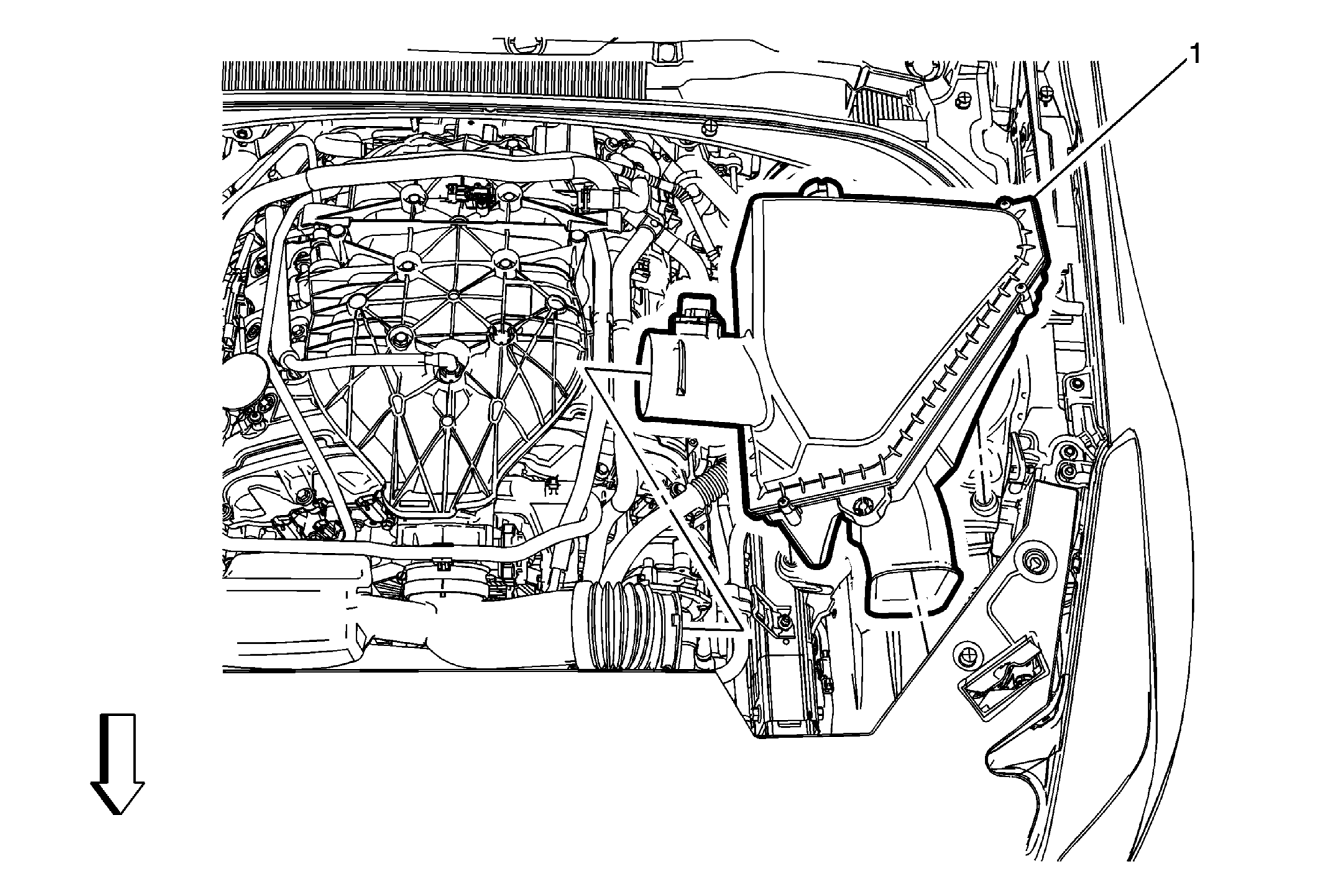

Fig 1: Air Cleaner Assembly (LFX)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Disconnect the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement (LFX) . Disconnect the mass airflow sensor electrical connector.
1	Air Cleaner Assembly Procedure Remove the air cleaner housing from the retainers. Transfer parts as necessary.

Callout

Component Name

Preliminary Procedures

Disconnect the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement (LFX) .
Disconnect the mass airflow sensor electrical connector.

Air Cleaner Assembly

Procedure
