Instrument Panel Lower Center Trim Panel Replacement (Right Side)

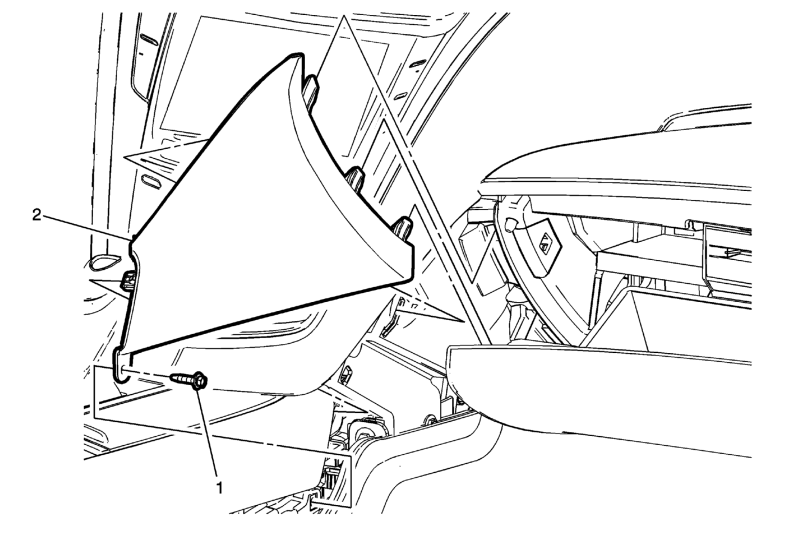

Fig 1: Instrument Panel Lower Center Trim Panel (Right Side)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the right front floor console side trim panel. Refer to Front Floor Console Side Trim Panel Replacement - Right Side .
1	Instrument Panel Lower Trim Panel Bolt CAUTION: Refer to Fastener Caution . Tighten  2.5 N.m (22 lb in)
2	Instrument Panel Lower Center Trim Panel Procedure  Use a flat-bladed plastic trim tool to remove the trim panel from the instrument panel carrier.
