Front Floor Console Side Trim Panel Replacement - Right Side

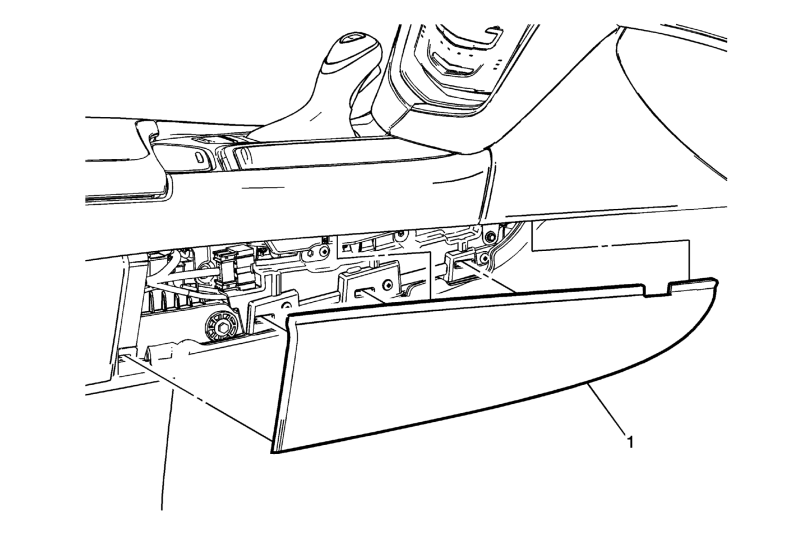

Fig 1: Front Floor Console Side Trim Panel - Right Side
Courtesy of GENERAL MOTORS COMPANY
Callout
Component Name
1
Front Floor Console Side Trim Panel - Right Side
Procedure
Use a flat-bladed plastic trim tool to remove the trim panel from the console.
