Instrument Panel Lower Center Trim Panel Replacement (Left Side)

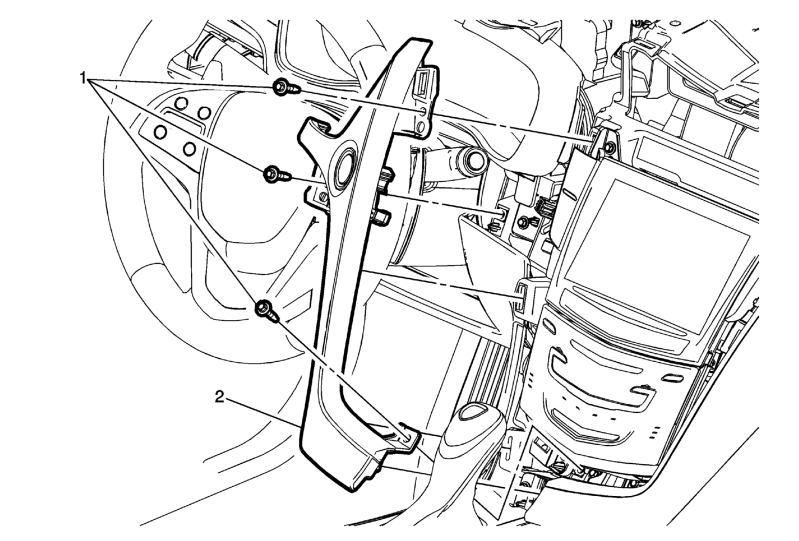

Fig 1: Instrument Panel Lower Center Trim Panel (Left Side)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the instrument panel center trim plate applique. Refer to Instrument Panel Center Trim Plate Applique Replacement . Remove the instrument panel accessory center trim plate. Refer to Instrument Panel Accessory Center Trim Plate Replacement .
1	Instrument Panel Lower Trim Pad Bolt (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Instrument Panel Lower Center Trim Panel Procedure Use a flat-bladed plastic trim tool to remove the trim panel from the instrument panel carrier. Disconnect the electrical connector.

Callout

Component Name

Preliminary Procedures

Remove the instrument panel center trim plate applique. Refer to Instrument Panel Center Trim Plate Applique Replacement .
Remove the instrument panel accessory center trim plate. Refer to Instrument Panel Accessory Center Trim Plate Replacement .

Instrument Panel Lower Trim Pad Bolt (Qty: 3)

CAUTION:

Tighten
2.5 N.m (22 lb in)

Instrument Panel Lower Center Trim Panel

Procedure

Use a flat-bladed plastic trim tool to remove the trim panel from the instrument panel carrier.
Disconnect the electrical connector.
