Instrument Panel Accessory Center Trim Plate Replacement

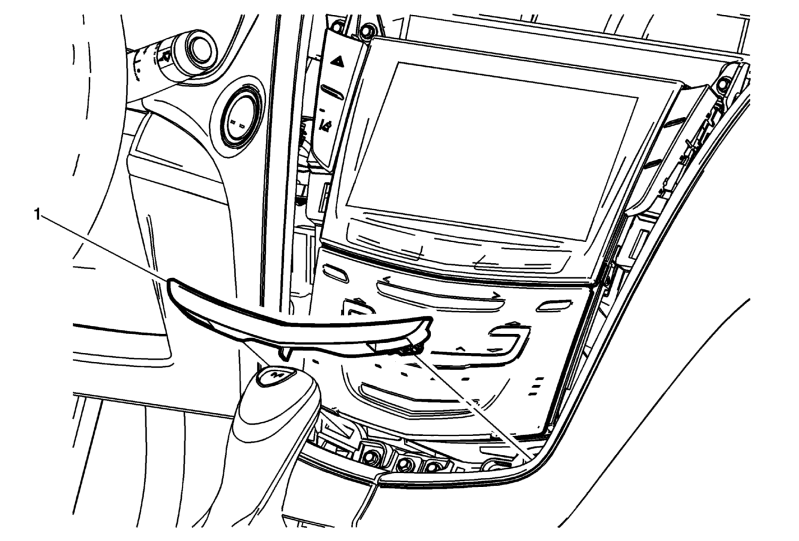

Fig 1: Instrument Panel Accessory Center Trim Plate

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the instrument panel trim plate. Refer to Instrument Panel Trim Plate Replacement .
1	Instrument Panel Accessory Center Trim Plate Procedure  Use a flat-bladed plastic trim tool to remove the center trim plate from the instrument panel carrier.
