Instrument Panel Trim Plate Replacement

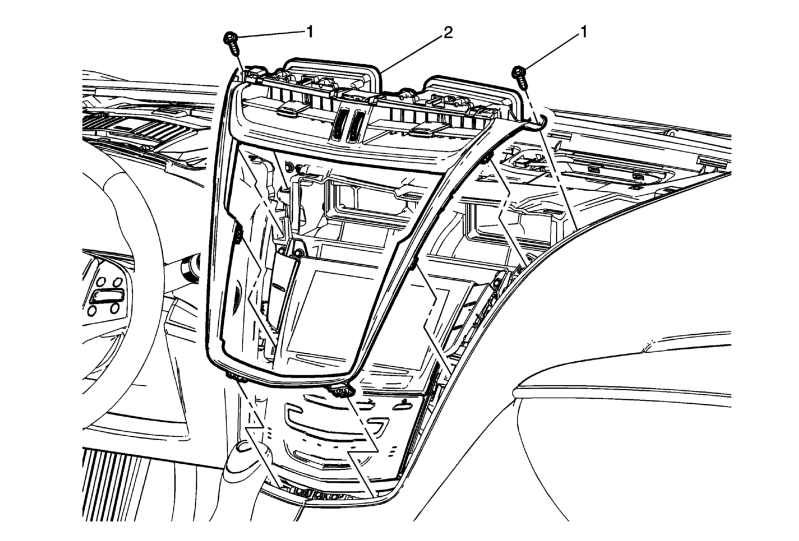

Fig 1: Instrument Panel Trim Plate
GM3448439Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the instrument panel center trim pad. Refer to Instrument Panel Center Trim Pad Replacement .
1 Instrument Panel Trim Plate Bolt (Qty: 2)
CAUTION:

Refer to Fastener Caution .


Tighten
2.5 N.m (22 lb in)
2 Instrument Panel Trim Plate

Procedure

  1. Use a flat-bladed plastic trim tool to remove the trim plate from the instrument panel carrier.
  2. Transfer components as necessary.
