Hood Primary Latch Release Cable Replacement
Courtesy of GENERAL MOTORS COMPANY Hood Primary Latch Release Cable Replacement

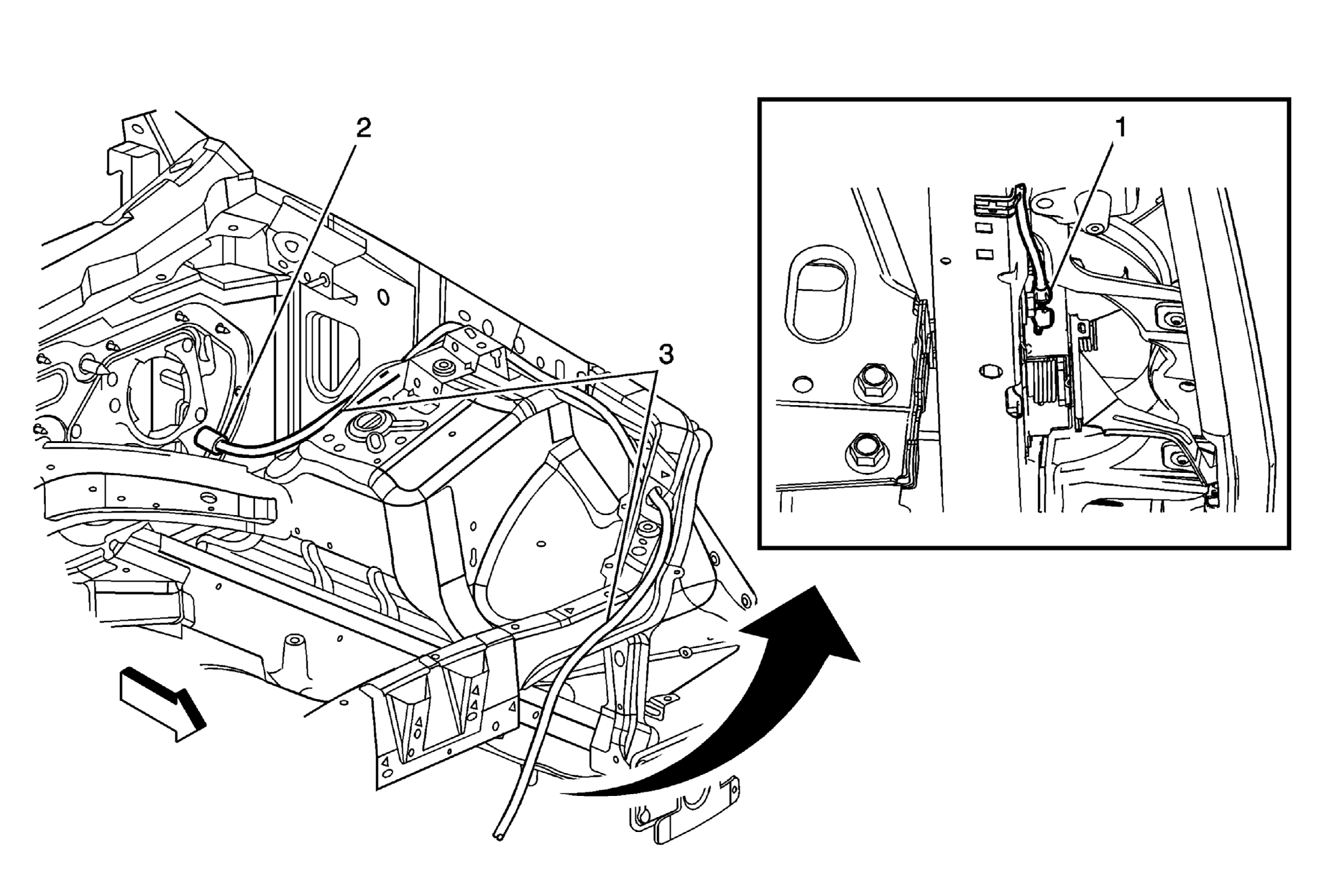

| Callout |
Component Name |
|
Preliminary Procedures
- Remove the front compartment front sight shield. Refer to Front Compartment Front Sight Shield Replacement .
- Remove the front compartment side sight shield. Refer to Front Compartment Side Sight Shield Replacement .
|
| 1 |
Hood Primary Latch Cable
Procedure
Disconnect the hood primary latch release cable from the primary hood latch. |
| 2 |
Hood Primary Latch Release Cable Grommet |
| 3 |
Hood Primary Latch Release Cable Procedure
- Attach mechanic's wire to guide the old/new cable through.
- Disconnect the hood primary latch release cable handle from the hood latch cable. Refer to Hood Primary Latch Release Cable Handle Replacement .
|
