Hood Primary Latch Release Cable Handle Replacement

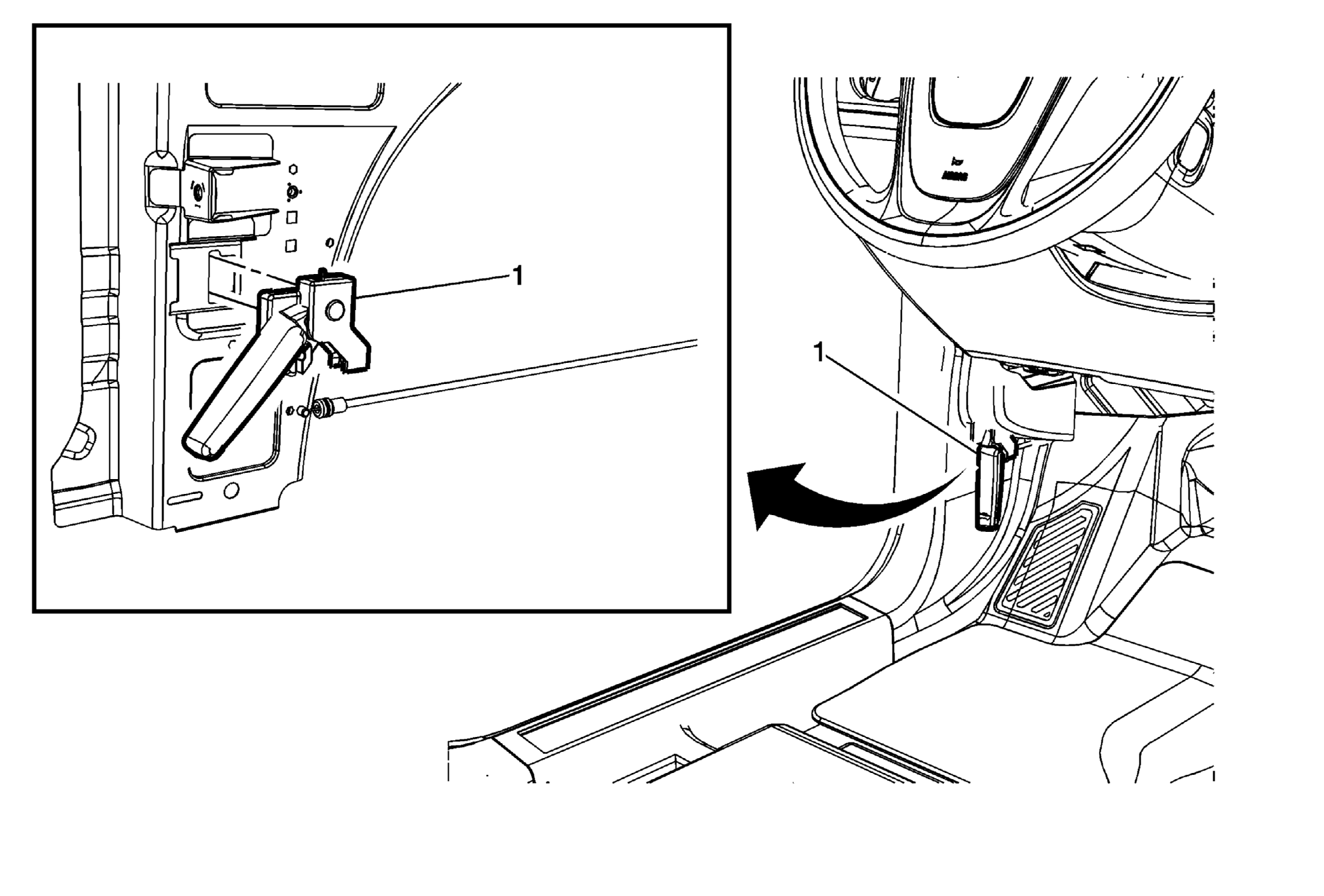

Fig 1: Hood Primary Latch Release Cable Handle

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the body hinge pillar trim panel. Refer to Body Hinge Pillar Trim Panel Replacement .
1	Hood Primary Latch Release Cable Handle Procedure Release the handle from the inner structure by pulling back and out. Disconnect the cable from the hood primary latch release handle.

Callout

Component Name

Preliminary Procedure
Remove the body hinge pillar trim panel. Refer to Body Hinge Pillar Trim Panel Replacement .

Hood Primary Latch Release Cable Handle

Procedure
