Passenger Seat Cushion Heater Replacement (With UFL)

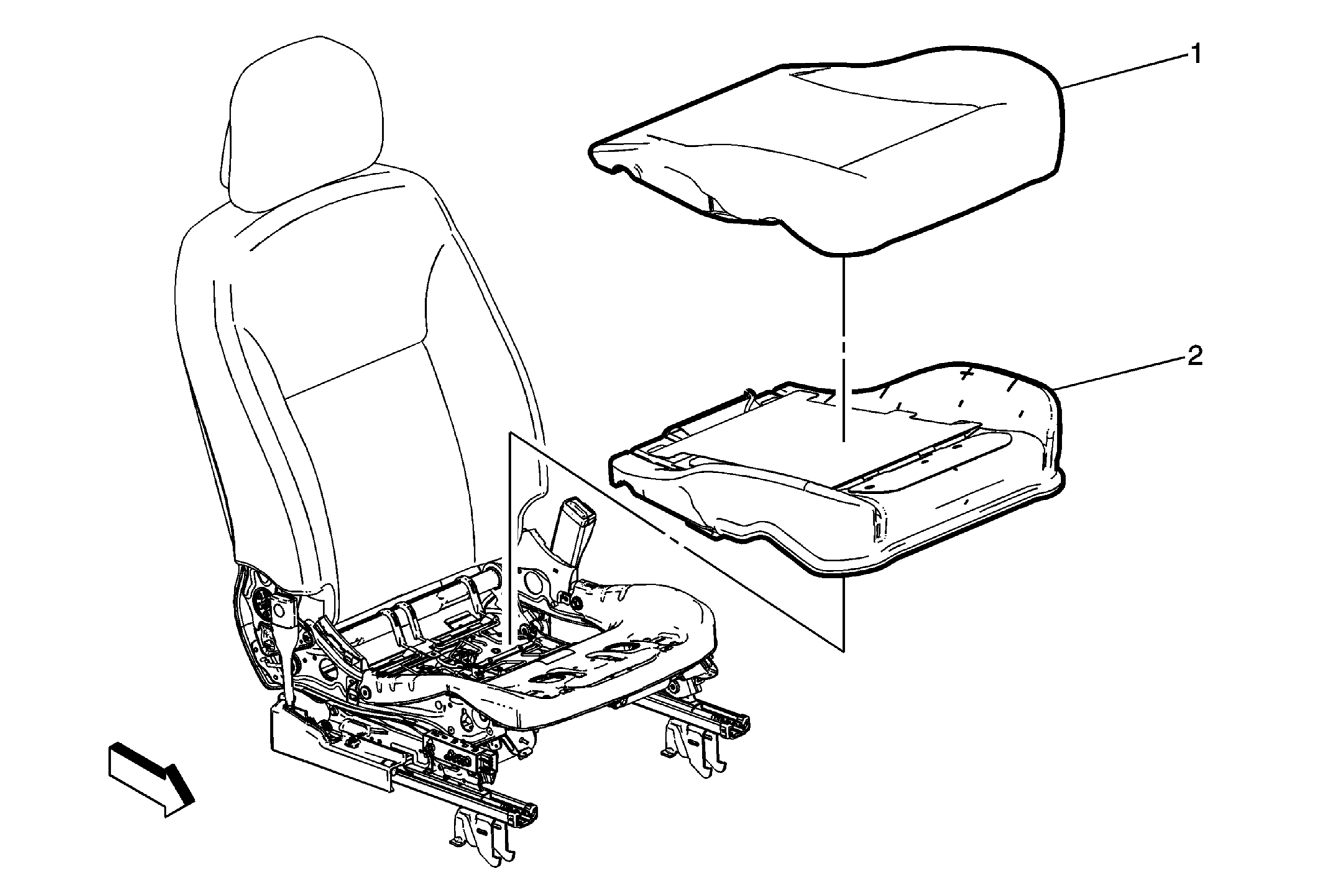

Fig 1: Passenger Seat Cushion Heater & Components (With UFL)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to SIR Warning . Preliminary Procedures Remove the driver or passenger seat. Refer to Driver or Passenger Seat Removal and Installation . Remove the front seat cushion cover and pad. Refer to Front Seat Cushion Cover and Pad Replacement .
1	Front Seat Cushion Cover Procedure Separate the seat cushion from the seat cushion pad by pulling the cover away from the pad.
2	Front Seat Cushion Pad NOTE: The heat mat, if equipped are integral parts of the seat cushion pad.

Callout

Component Name

WARNING:

Preliminary Procedures

Remove the driver or passenger seat. Refer to Driver or Passenger Seat Removal and Installation .
Remove the front seat cushion cover and pad. Refer to Front Seat Cushion Cover and Pad Replacement .

Front Seat Cushion Cover
Procedure
Separate the seat cushion from the seat cushion pad by pulling the cover away from the pad.

Front Seat Cushion Pad

NOTE:

The heat mat, if equipped are integral parts of the seat cushion pad.
