Driver or Passenger Seat Removal and Installation

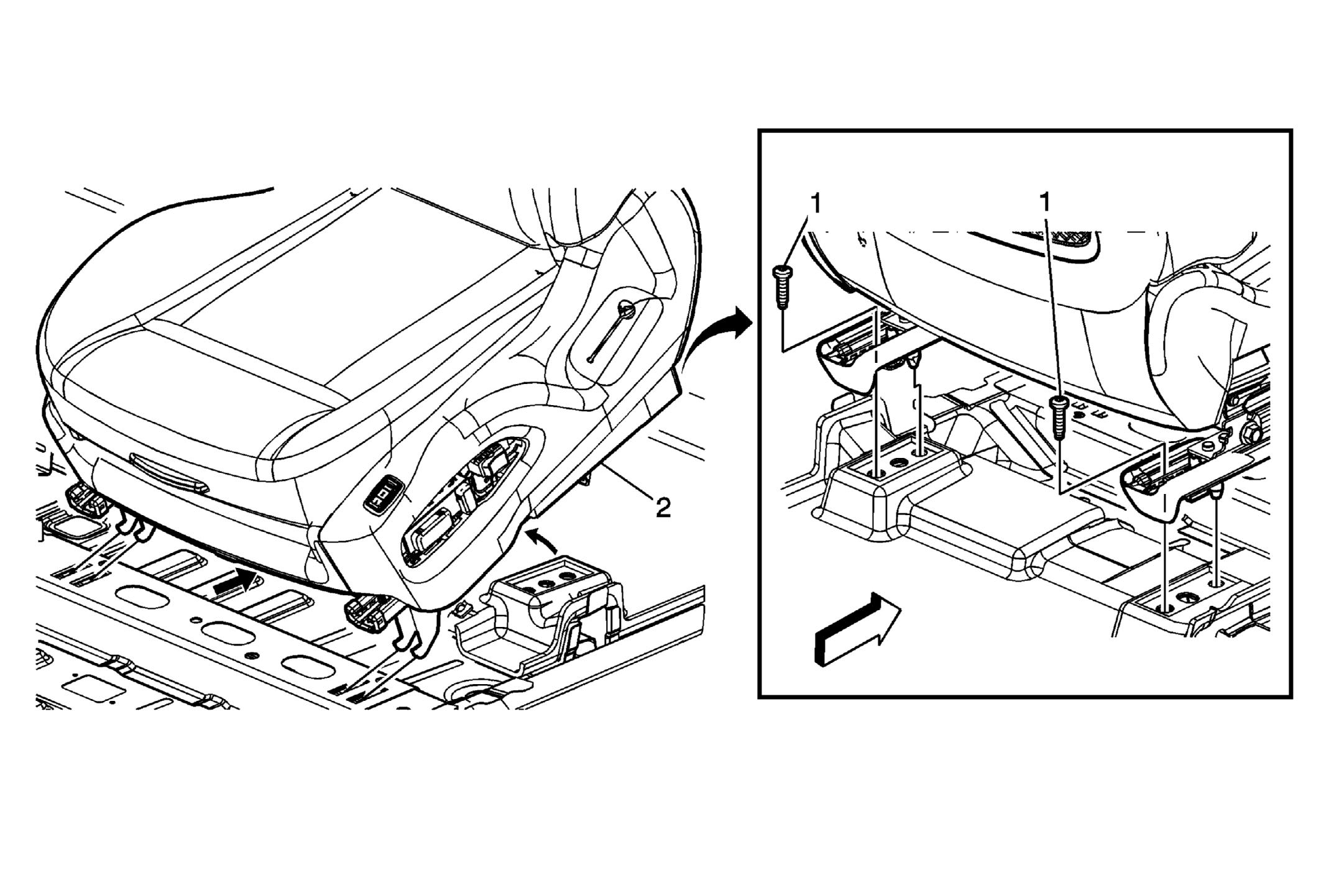

Fig 1: View Of Driver Or Passenger Seat & Bolts
GM2219253Courtesy of GENERAL MOTORS COMPANY
Driver or Passenger Seat Removal and Installation

Callout Component Name
WARNING:

Refer to SIR Warning .

Preliminary Procedure

  1. Disable the SIR system. Refer to SIR Disabling and Enabling .
  2. Disconnect the seat belt from the tensioner. Refer to Front Seat Belt Anchor Plate Tensioner Replacement .
  3. Remove the front seat adjuster track finish covers. Refer to Front Seat Adjuster Track Finish Cover Replacement (Front) , Front Seat Adjuster Track Finish Cover Replacement (Rear) .
1 Front Seat Bolt (Qty: 2)
CAUTION:

Refer to Fastener Caution .


Procedure
Adjust the seat to the forawrd position to gain access to the rear bolts.
Tighten
45 N.m (33 lb ft)
2 Front Seat Assembly

Procedure

  1. Disconnect the front seat and pretensioner electrical connector, and passenger presence system connector, if equipped.
  2. With the aid of an assistant remove the front seat, by tilting the seat forward, and then lifting and pulling the seat rearwards to disengage the 4 front foot hooks.
  3. Perform the front seat track synchronization procedure before seat installation. Refer to Front Seat Track Synchronization
  4. If replacing with a new seat assembly, the new seat adjuster memory module requires programming. Refer to Control Module References
