Front Seat Vent Fan Replacement

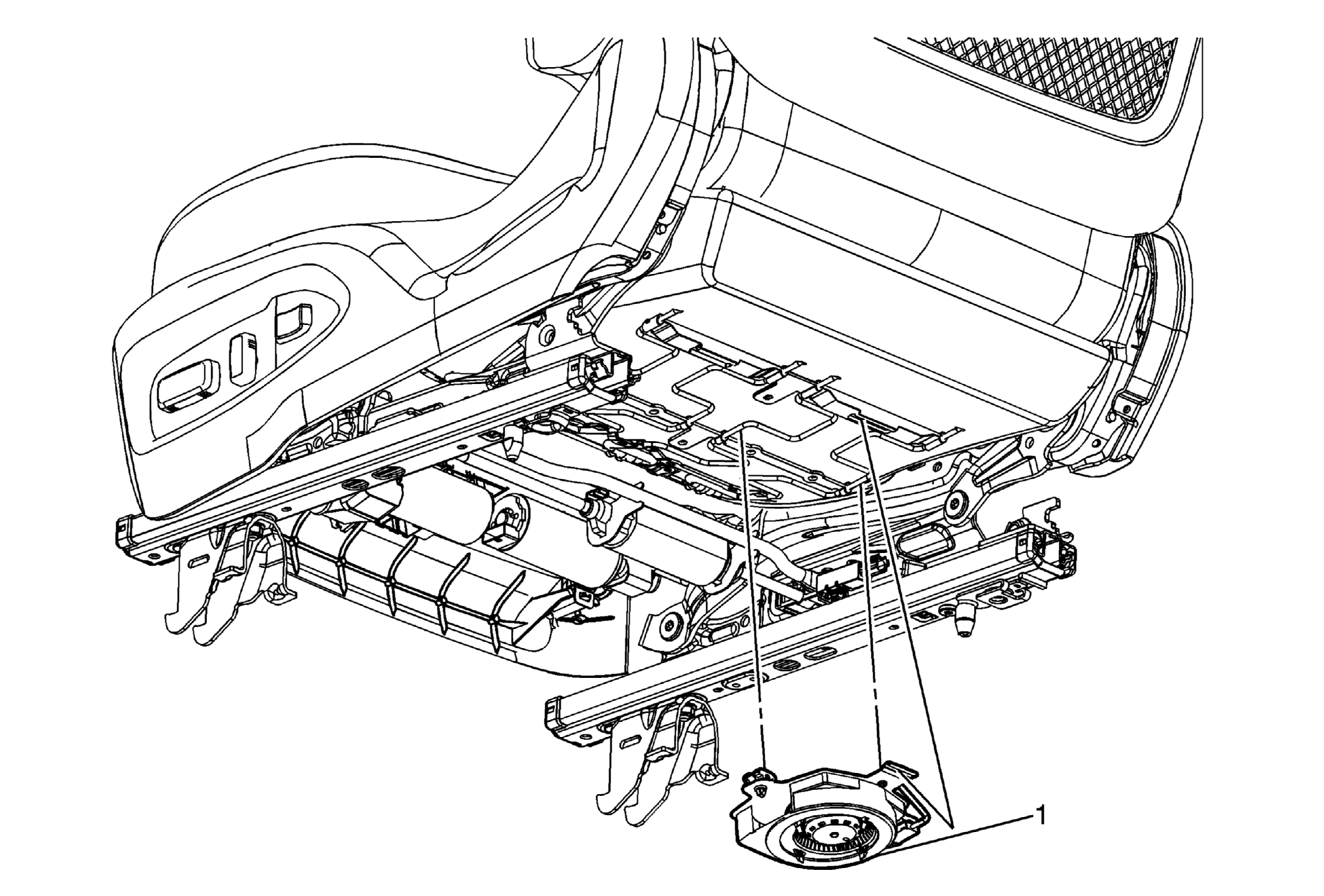

Fig 1: Locating Front Seat Vent Fan

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the driver or passenger seat. Refer to Driver or Passenger Seat Removal and Installation .
1	Front Seat Vent Fan Procedure Disengage the ventilation heating and cooling module duct. Disconnect the electrical connector. Disconnect the retainers from the flex mat.

Callout

Component Name

Preliminary Procedure
Remove the driver or passenger seat. Refer to Driver or Passenger Seat Removal and Installation .

Front Seat Vent Fan

Procedure
