Front Seat Adjuster Track Finish Cover Replacement (Front)

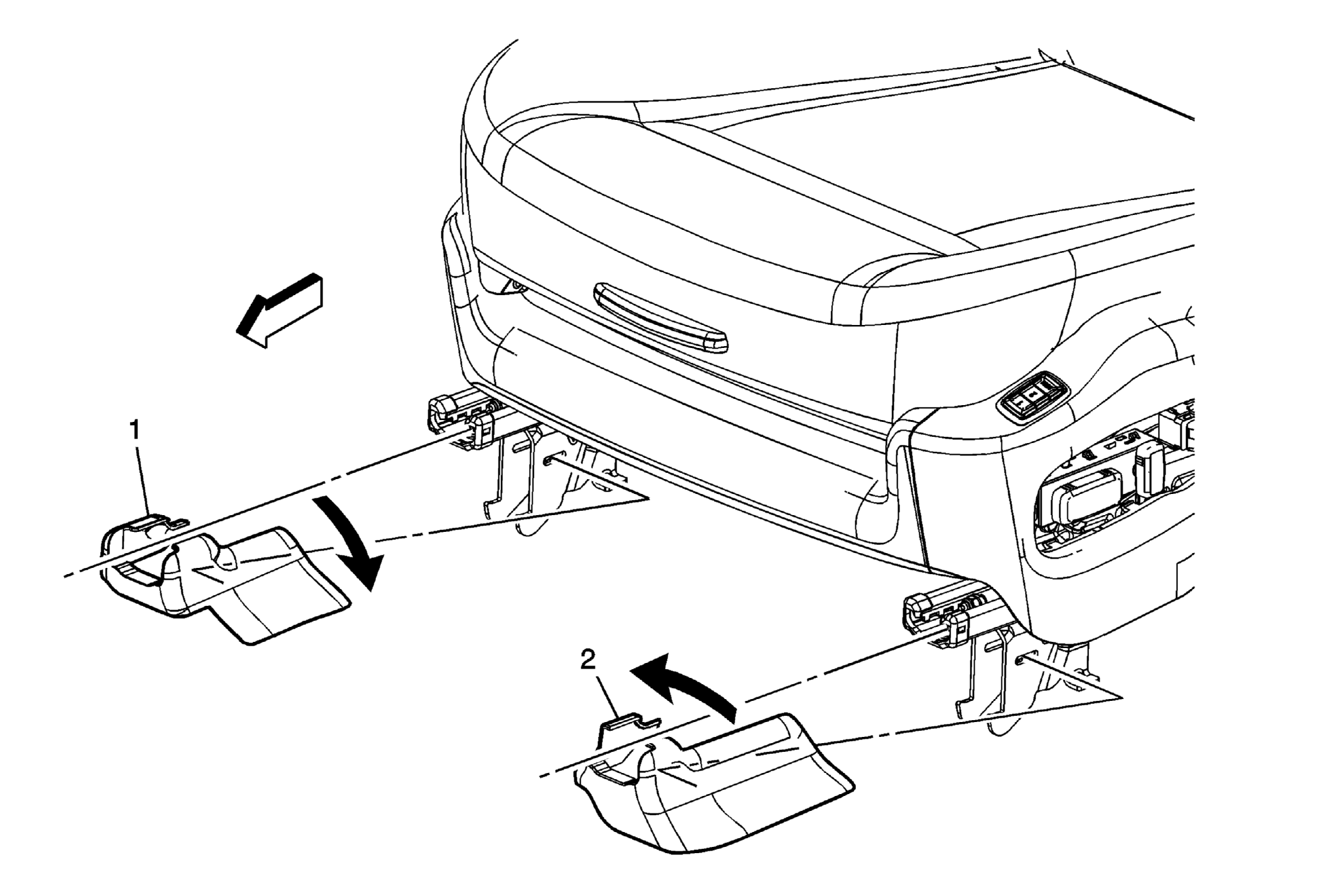

Fig 1: Identifying Front Seat Adjuster Track Finish Covers (Front)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Front Seat Front Inner Adjuster Track Finish Cover Procedure Pinch front portion of cover with right hand, grab rear edge with left hand. Slowly and gently pull rear edge out while rotating front edge in counter-clockwise direction. Continue rotating until outside lip disengages from track, gently pull cover off.
2	Front Seat Front Outer Adjuster Track Finish Cover Procedure Pinch front portion of cover with left hand, grab rear edge with right hand. Slowly and gently pull rear edge while rotating front edge in clockwise direction. Continue rotating until outside lip disengages track, gently pull cover off.
