Driver Seat Bracket Replacement (With UFL)

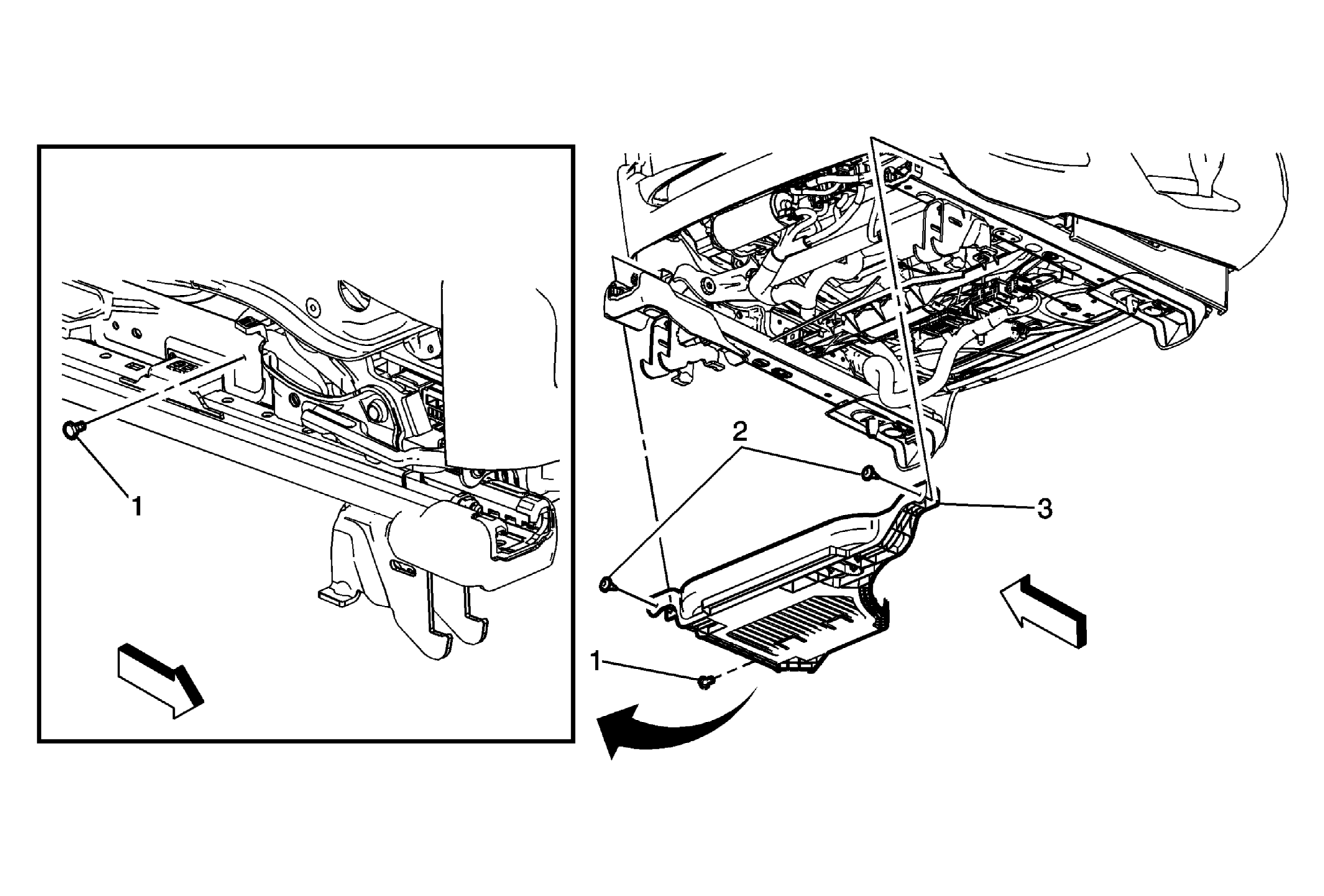

Fig 1: Driver Seat Bracket & Fasteners (With UFL)
GM2833614Courtesy of GENERAL MOTORS COMPANY
Driver Seat Bracket Replacement (With UFL)

Callout Component Name
Preliminary Procedure
Remove the driver seat. Refer to Driver or Passenger Seat Removal and Installation .
1 Driver Seat Bracket Side Fastener
CAUTION:

Refer to Fastener Caution .
2 Driver Seat Bracket Front Fasteners (Qty: 2)
3 Driver Seat Bracket

Procedure

  1. Disconnect electrical connectors.
  2. Transfer components as necessary.
