Driver or Passenger Seat Adjuster Memory Module Replacement (With UFL)

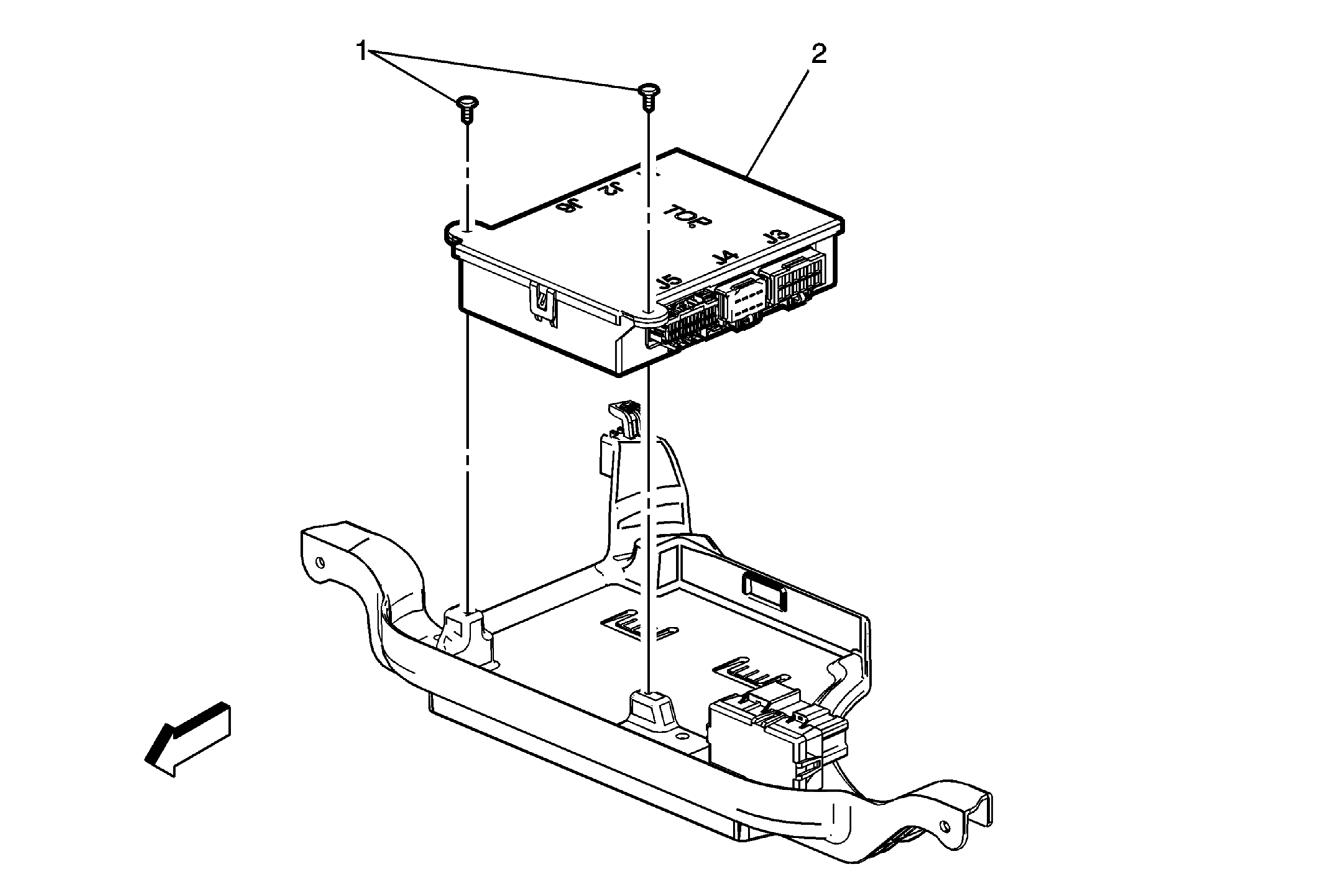

Fig 1: Driver or Passenger Seat Adjuster Memory Module & Fasteners (With UFL)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the driver seat bracket. Refer to Driver Seat Bracket Replacement (With UFL) .
1	Driver or Passenger Seat Adjuster Memory Module Fastener (Qty: 2) CAUTION: Refer to Fastener Caution .
2	Driver or Passenger Seat Adjuster Memory Module Procedure Disconnect electrical connectors. Remove the module from the driver seat bracket. Refer to Control Module References for programing and setup information.

Callout

Component Name

Preliminary Procedure
Remove the driver seat bracket. Refer to Driver Seat Bracket Replacement (With UFL) .

Driver or Passenger Seat Adjuster Memory Module Fastener (Qty: 2)

CAUTION:

Driver or Passenger Seat Adjuster Memory Module

Procedure
