Center Pillar Upper Trim Panel Replacement

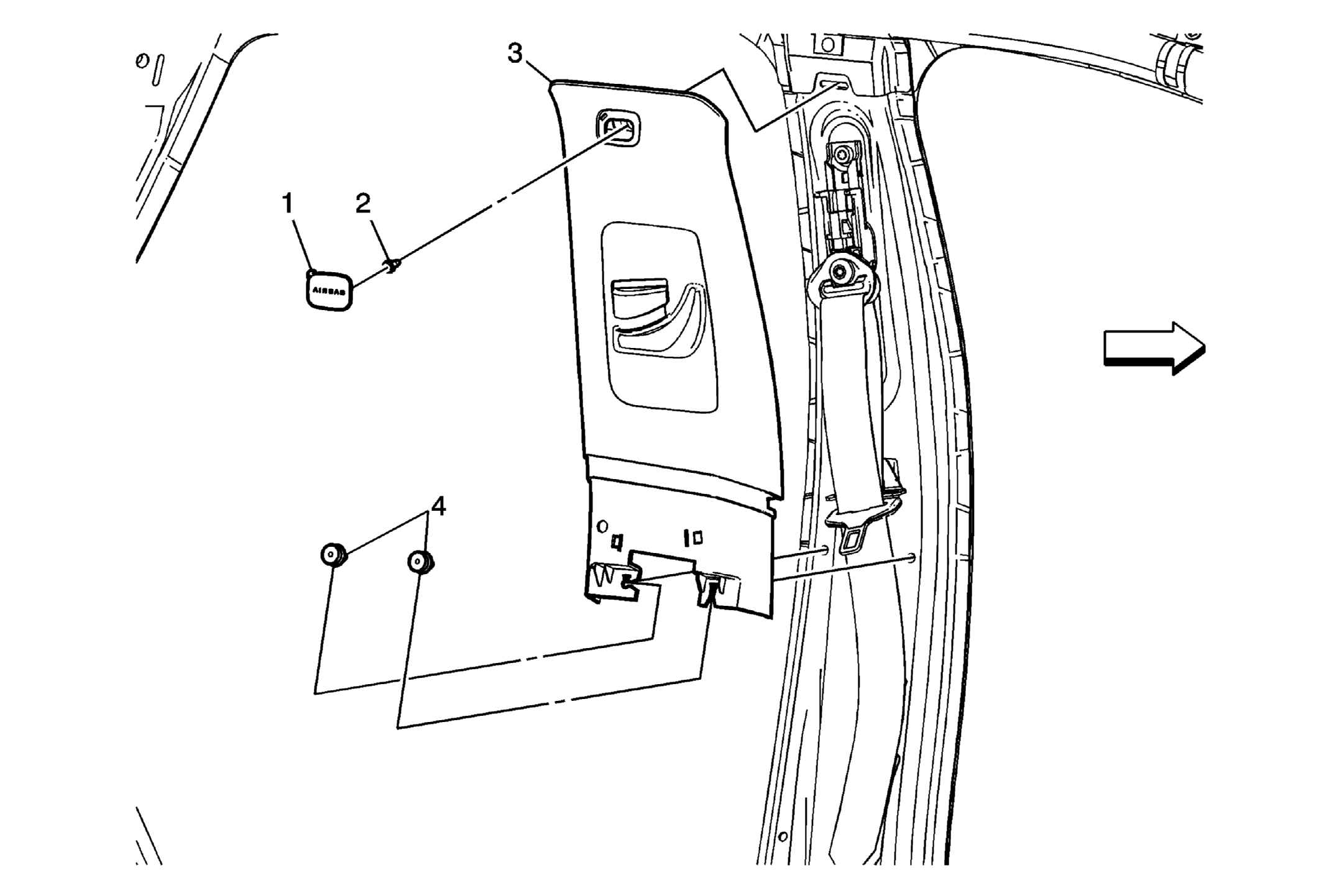

Fig 1: Identifying Center Pillar Upper Trim Panel Components

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Disable the roof rail SIR system. Refer to SIR Disabling and Enabling . Remove the seat belt tensioner fastener and feed seat belt through center pillar upper trim panel. Refer to Seat Belt Retractor Pretensioner Replacement - Front . Remove the center pillar lower trim panel. Refer to Center Pillar Lower Trim Panel Replacement .
1	Center Pillar Upper Trim Panel Bolt Cap
2	Center Pillar Upper Trim Panel Fastener CAUTION: Refer to Fastener Caution . Tighten 2 N.m (18 lb in)
3	Center Pillar Upper Trim Panel Assembly Procedure Pull the trim panel toward the inside of the vehicle to disengage the retainers.
4	Center Pillar Upper Trim Clip (Qty: 2)
