Center Pillar Lower Trim Panel Replacement

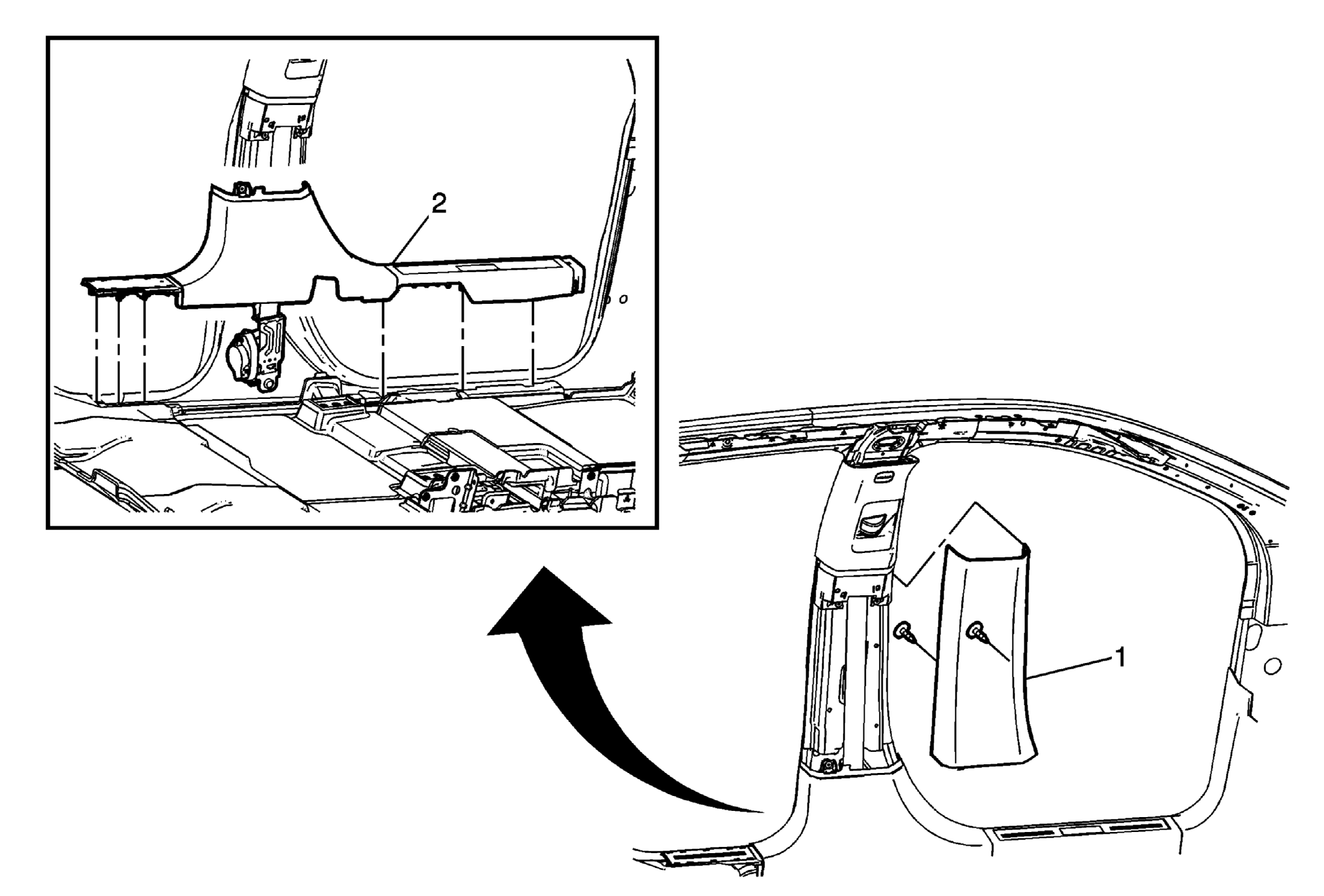

Fig 1: Locating Center Pillar Lower Trim Panel

Courtesy of GENERAL MOTORS COMPANY

Center Pillar Lower Trim Panel Replacement

Callout	Component Name
Preliminary Procedure  Remove the body hinge pillar trim panel. Refer to Body Hinge Pillar Trim Panel Replacement .
1	Center Pillar Lower Trim Panel Assembly Procedure  Remove the upper trim and lower trim panel together, then separate the two.
2	Center Pillar Lower Trim Procedure  Disconnect the electrical connector, if equipped.
