Body Hinge Pillar Trim Panel Replacement

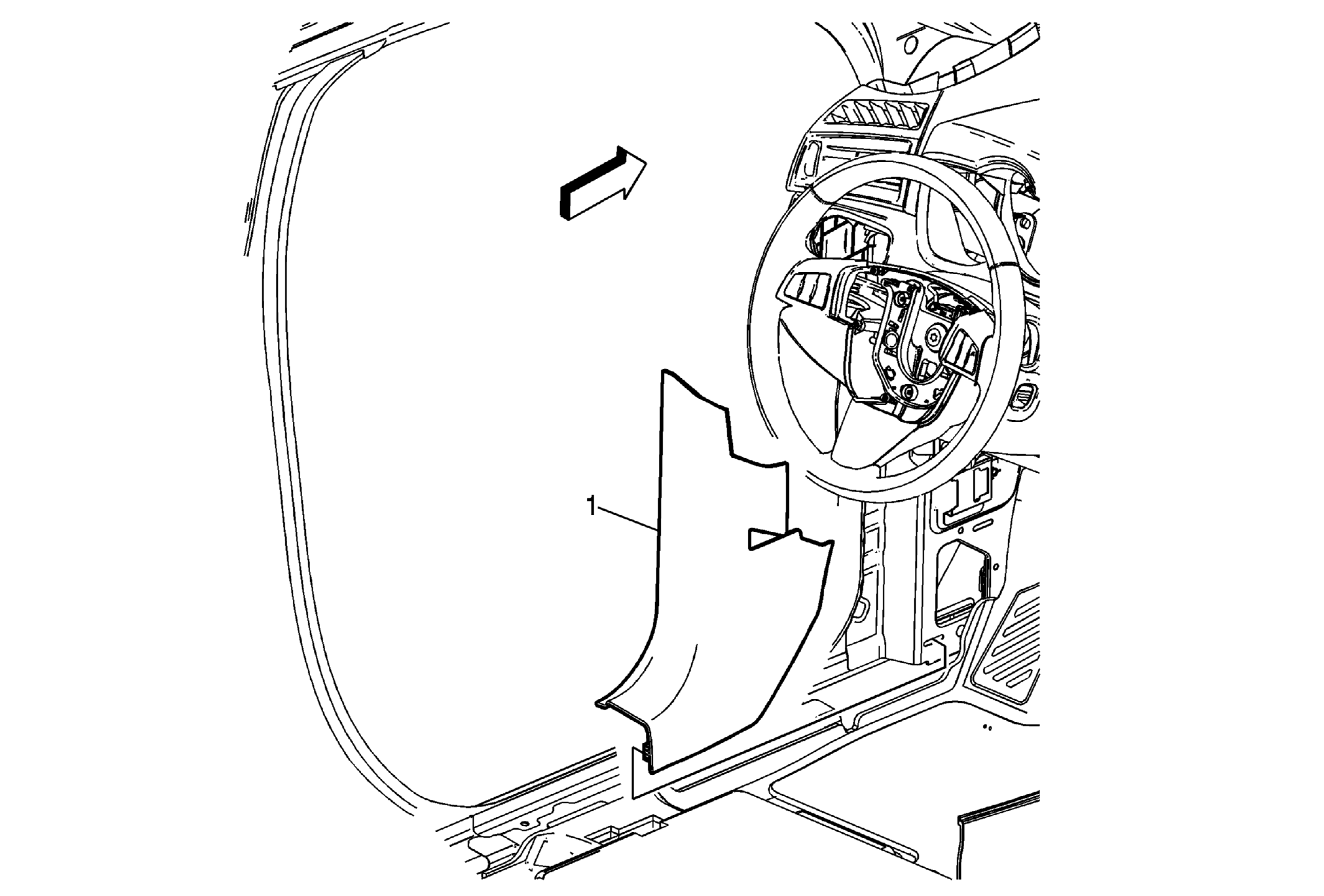

Fig 1: View Of Body Hinge Pillar Trim Panel

Courtesy of GENERAL MOTORS COMPANY

Body Hinge Pillar Trim Panel Replacement

Callout	Component Name
Preliminary Procedure  Remove the instrument panel side trim panel. Refer to Instrument Panel Side Trim Panel Replacement
1	Body Hinge Pillar Trim Panel Assembly Procedure  Reposition the front floor panel carpet as needed.
