Instrument Panel Side Trim Panel Replacement

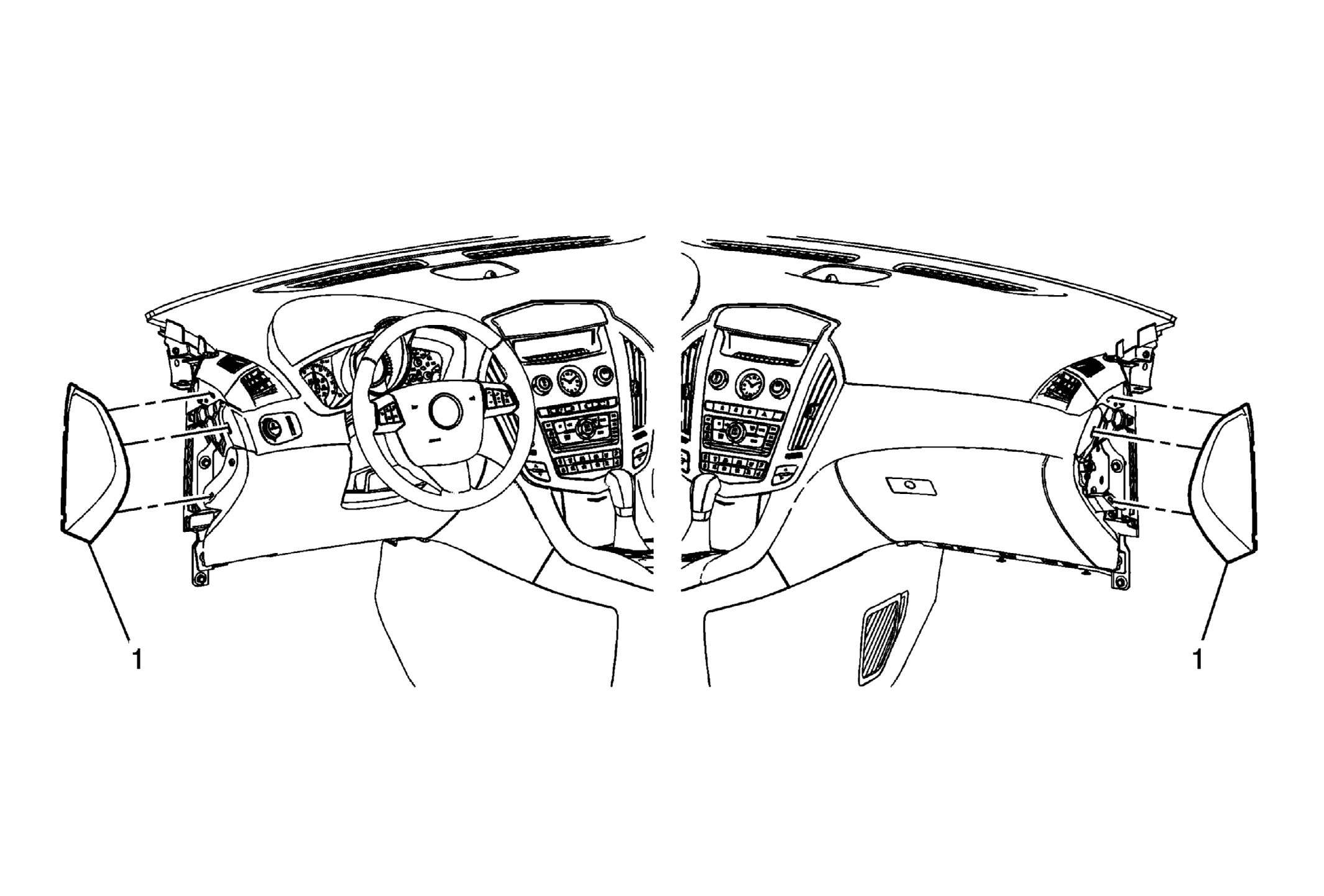

Fig 1: View Of Instrument Panel Side Trim Panel
GM2220890Courtesy of GENERAL MOTORS COMPANY
Instrument Panel Side Trim Panel Replacement

Callout Component Name
1 Instrument Panel Side Trim Panel Assembly (Right or Left)
Procedure
Use a flat bladed plastic trim tool in order to release the retainer clips securing the instrument panel side trim panel to the instrument panel assembly.
