Instrument Panel Center Compartment Replacement

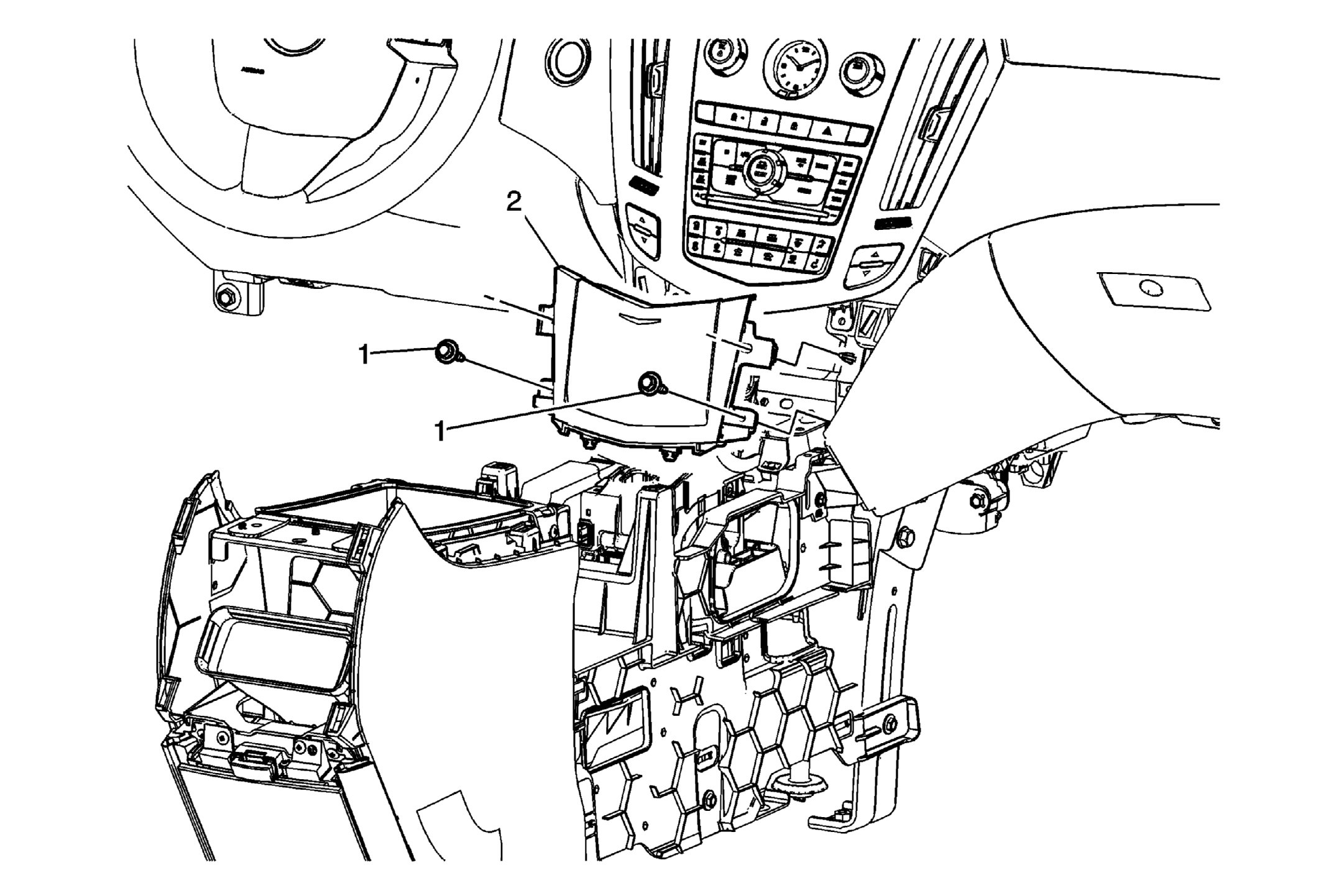

Fig 1: View Of Instrument Panel Center Compartment

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Loosen the front floor console extension panels to gain access to the fasteners without having to remove the driver and passenger seats. Refer to Front Floor Console Extension Replacement . Remove the front floor console trim plate. Refer to Front Floor Console Trim Plate Replacement . NOTE: Set the electric parking brake before moving the shift lever into the neutral position.
1	Instrument Panel Center Compartment Fastener (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 2.5 (22 lb in)
2	Instrument Panel Center Compartment Assembly Procedure Grasp the instrument panel center compartment and pull rearward releasing the retainer clips securing the compartment to the instrument panel assembly. Disconnect the electrical connections, if applicable. NOTE: The shift lever should be in the neutral position in order to create space to remove the center compartment.

Callout

Component Name

Preliminary Procedures

Loosen the front floor console extension panels to gain access to the fasteners without having to remove the driver and passenger seats. Refer to Front Floor Console Extension Replacement .
Remove the front floor console trim plate. Refer to Front Floor Console Trim Plate Replacement .

NOTE:

Set the electric parking brake before moving the shift lever into the neutral position.

Instrument Panel Center Compartment Fastener (Qty: 2)

CAUTION:

Tighten
2.5 (22 lb in)

Instrument Panel Center Compartment Assembly

Procedure

Grasp the instrument panel center compartment and pull rearward releasing the retainer clips securing the compartment to the instrument panel assembly.
Disconnect the electrical connections, if applicable.

NOTE:

The shift lever should be in the neutral position in order to create space to remove the center compartment.
