Front Floor Console Extension Replacement
Front Floor Console Extension Replacement
| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the right or left front seat assembly. Refer to Driver or Passenger Seat Removal and Installation . |
|

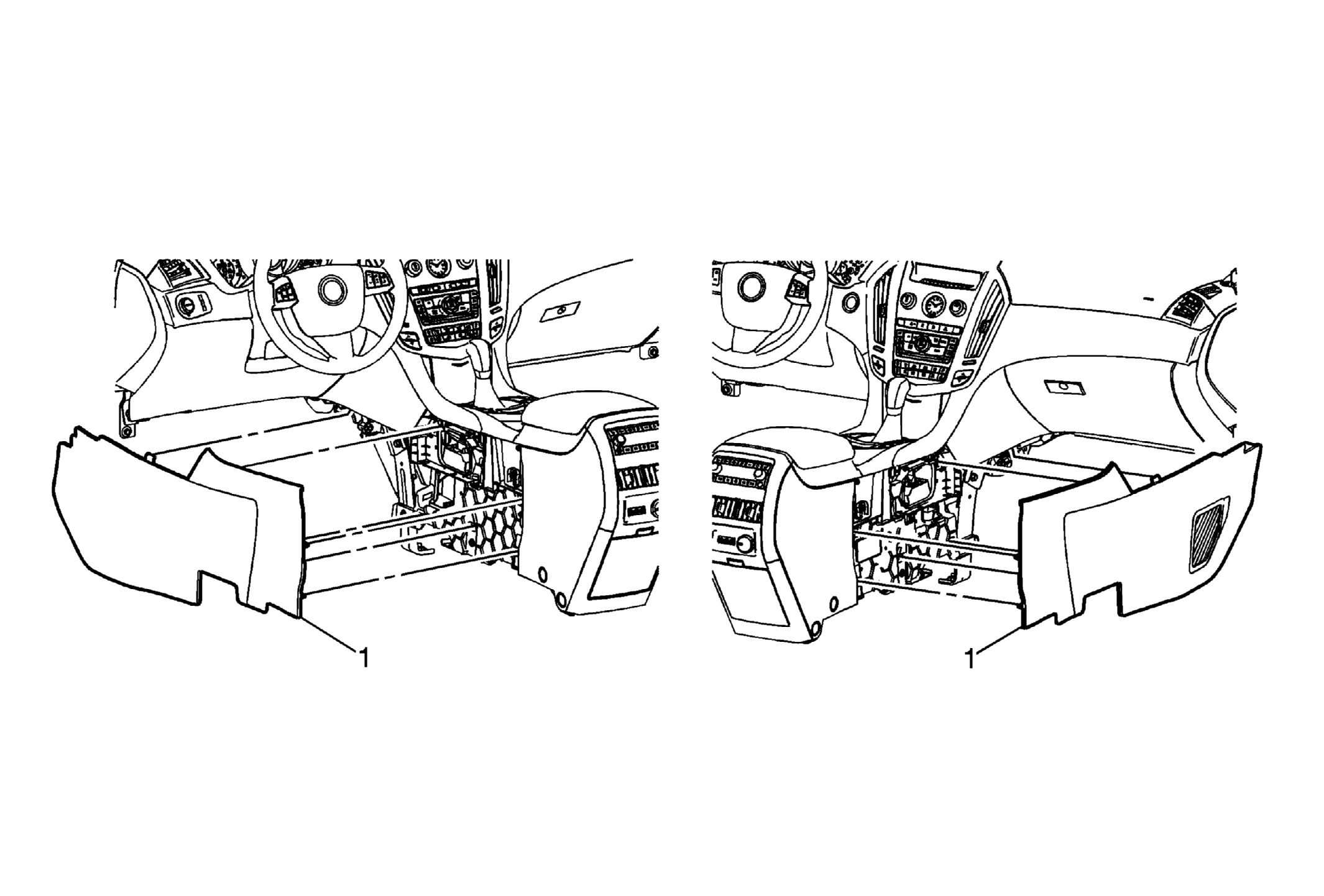

| 1 | Front Floor Console Extension Assembly (Right or Left) Procedure Use a flat bladed plastic trim tool in order to release the retainer clips securing the front floor console extensions to the front floor console assembly. |
