Theft Deterrent Alarm Replacement

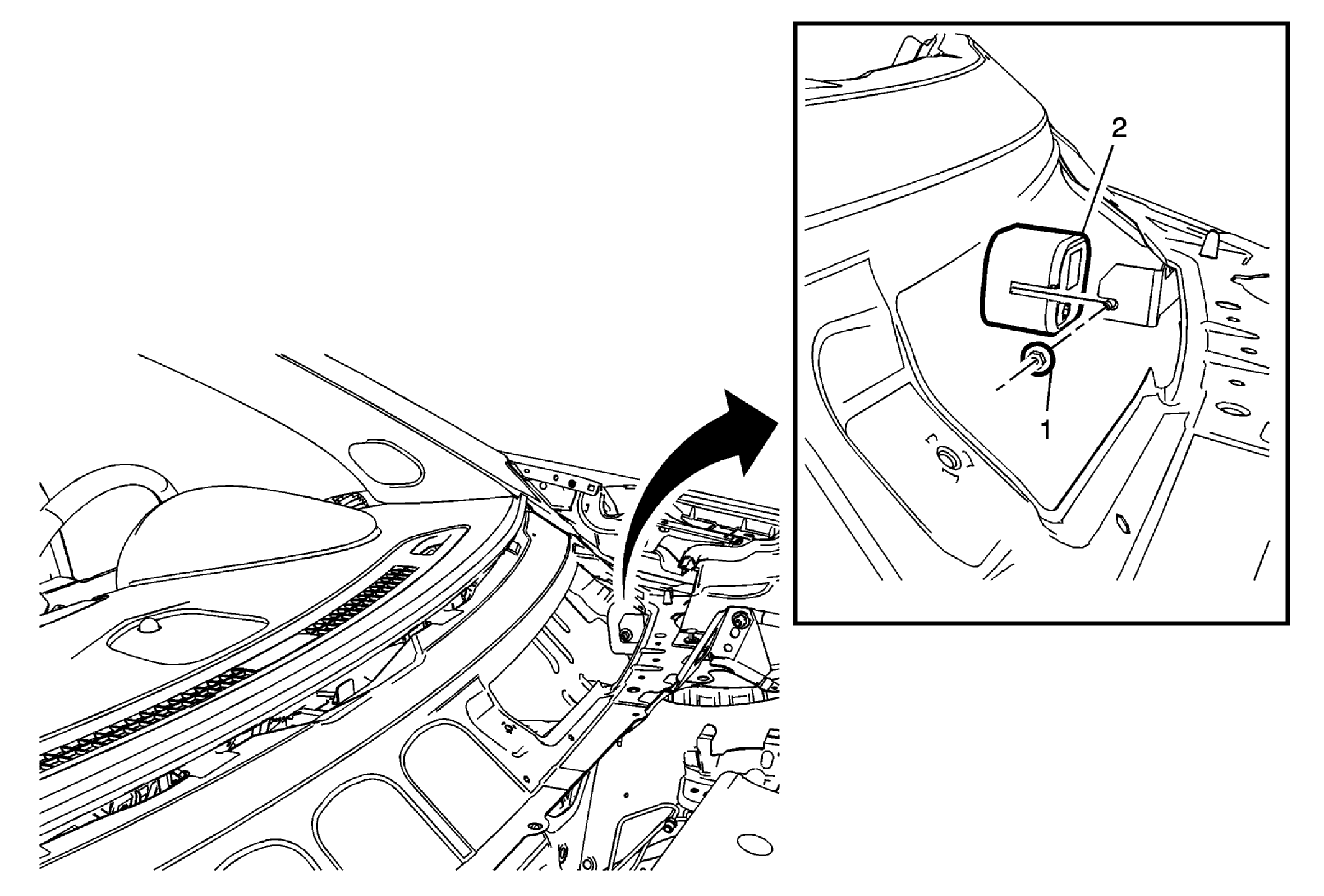

Fig 1: Theft Deterrent Alarm

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the air inlet grille panel. Refer to Air Inlet Grille Panel Replacement .
1	Fastener Bracket Theft Deterrent Alarm CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Theft Deterrent Alarm Procedure Disconnect the electrical connector. Remove the theft deterrent alarm from bracket.

Callout

Component Name

Preliminary Procedures
Remove the air inlet grille panel. Refer to Air Inlet Grille Panel Replacement .

Fastener Bracket Theft Deterrent Alarm

CAUTION:

Tighten
9 N.m (80 lb in)

Theft Deterrent Alarm

Procedure
