Sun Load Temperature and Daytime Running Lamp Ambient Light Sensor Replacement

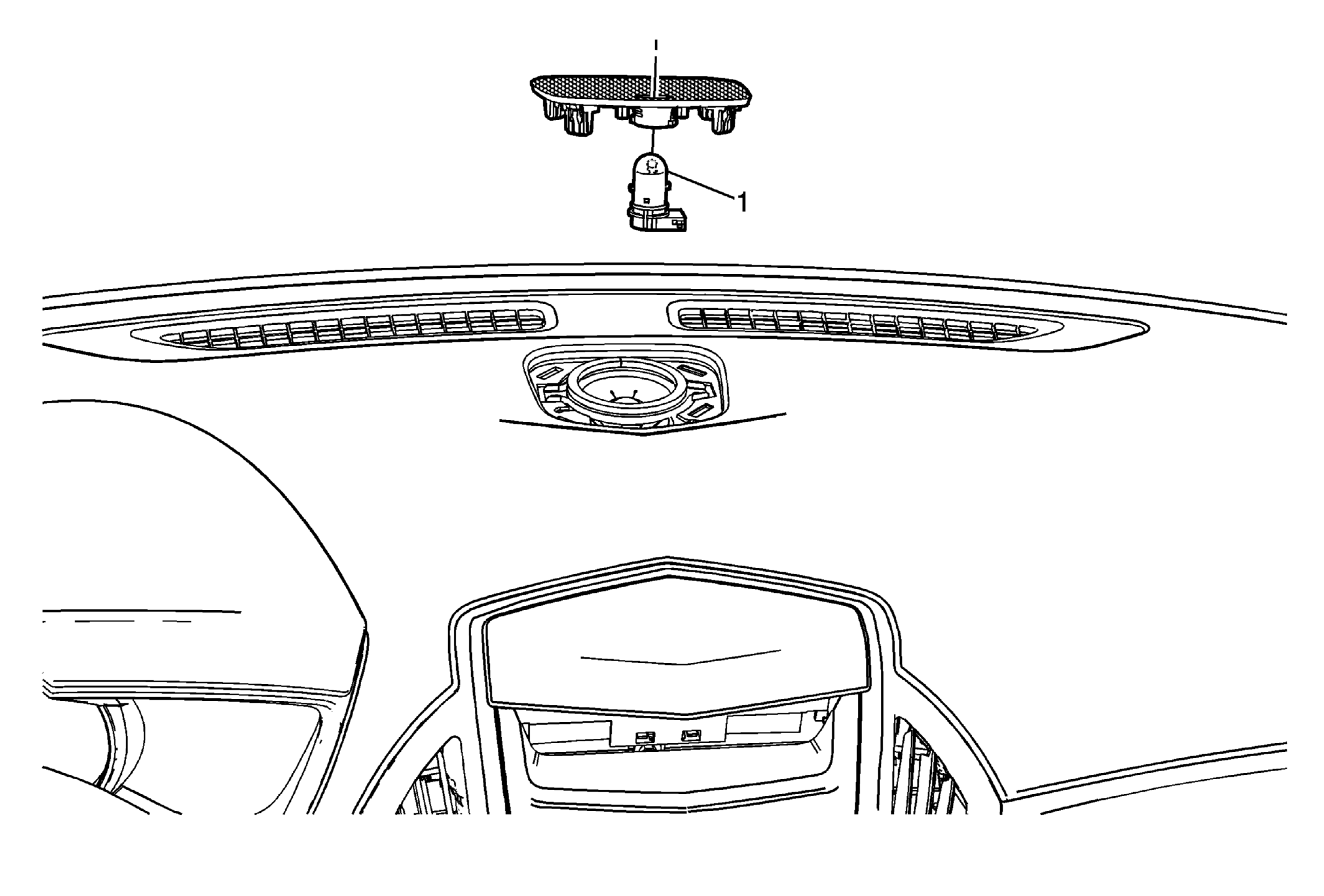

Fig 1: Identifying Sun Load Temperature & Daytime Running Lamp Ambient Light Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the radio front speaker grille. Refer to Radio Front Speaker Grille Replacement .
1	Sunload Temperature and Daytime Running Lamp and Ambient Light Sensor Procedure Twist and pull up to remove. Disconnect electrical connector.

Callout

Component Name

Preliminary Procedure
Remove the radio front speaker grille. Refer to Radio Front Speaker Grille Replacement .

Sunload Temperature and Daytime Running Lamp and Ambient Light Sensor

Procedure
