Radio Front Speaker Grille Replacement

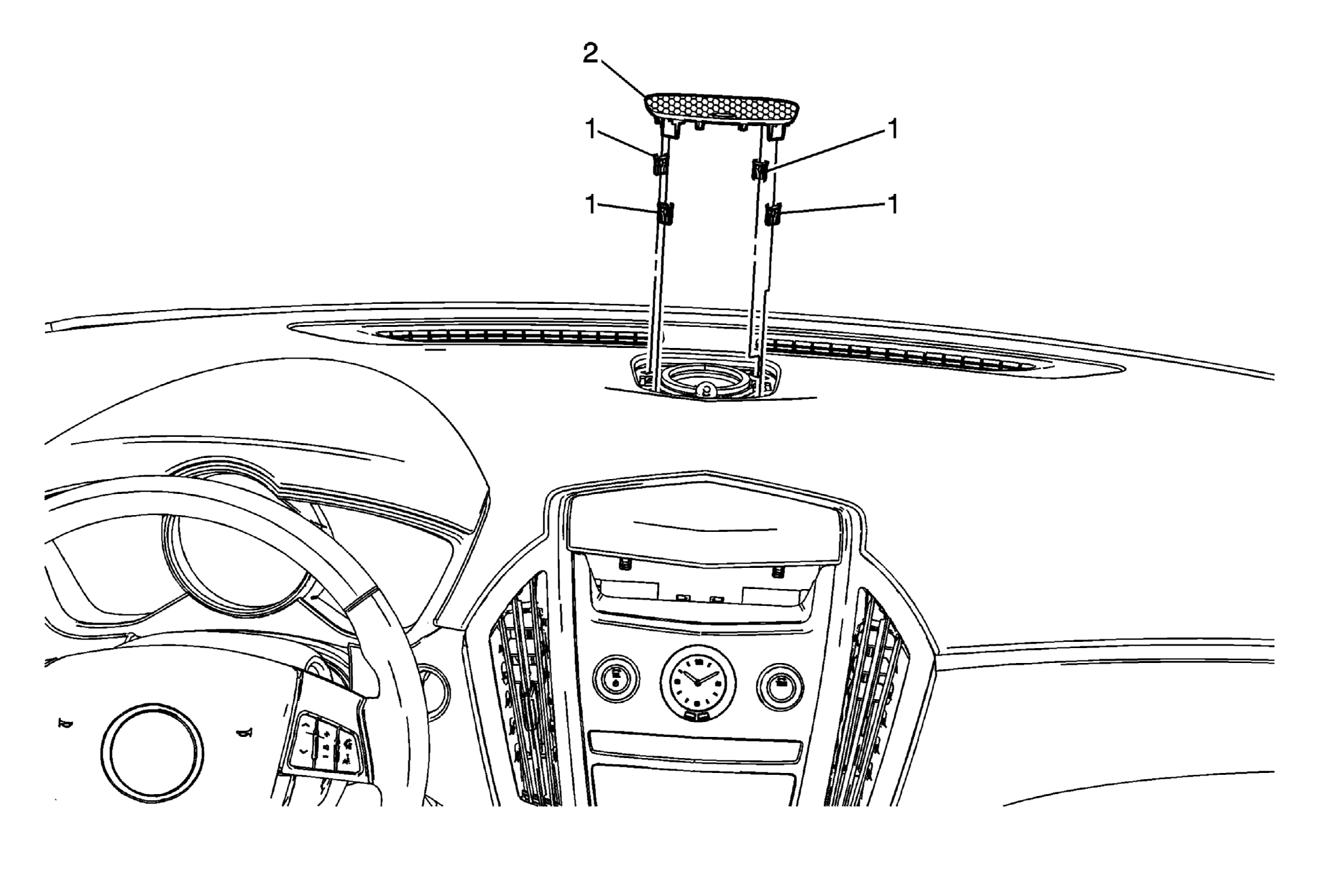

Fig 1: View Of Radio Front Speaker Grille & Retainers
GM2221254Courtesy of GENERAL MOTORS COMPANY
Radio Front Speaker Grille Replacement

Callout Component Name
1 Radio Front Speaker Grille Retainer (Qty: 4)
2 Radio Front Speaker Grille Assembly

Procedure

  1. Disconnect the electrical connection.
  2. Use a plastic flat bladed tool to remove the grille assembly.
  3. When replacing the speaker grille, transfer all necessary parts.
