Headlamp Switch Replacement

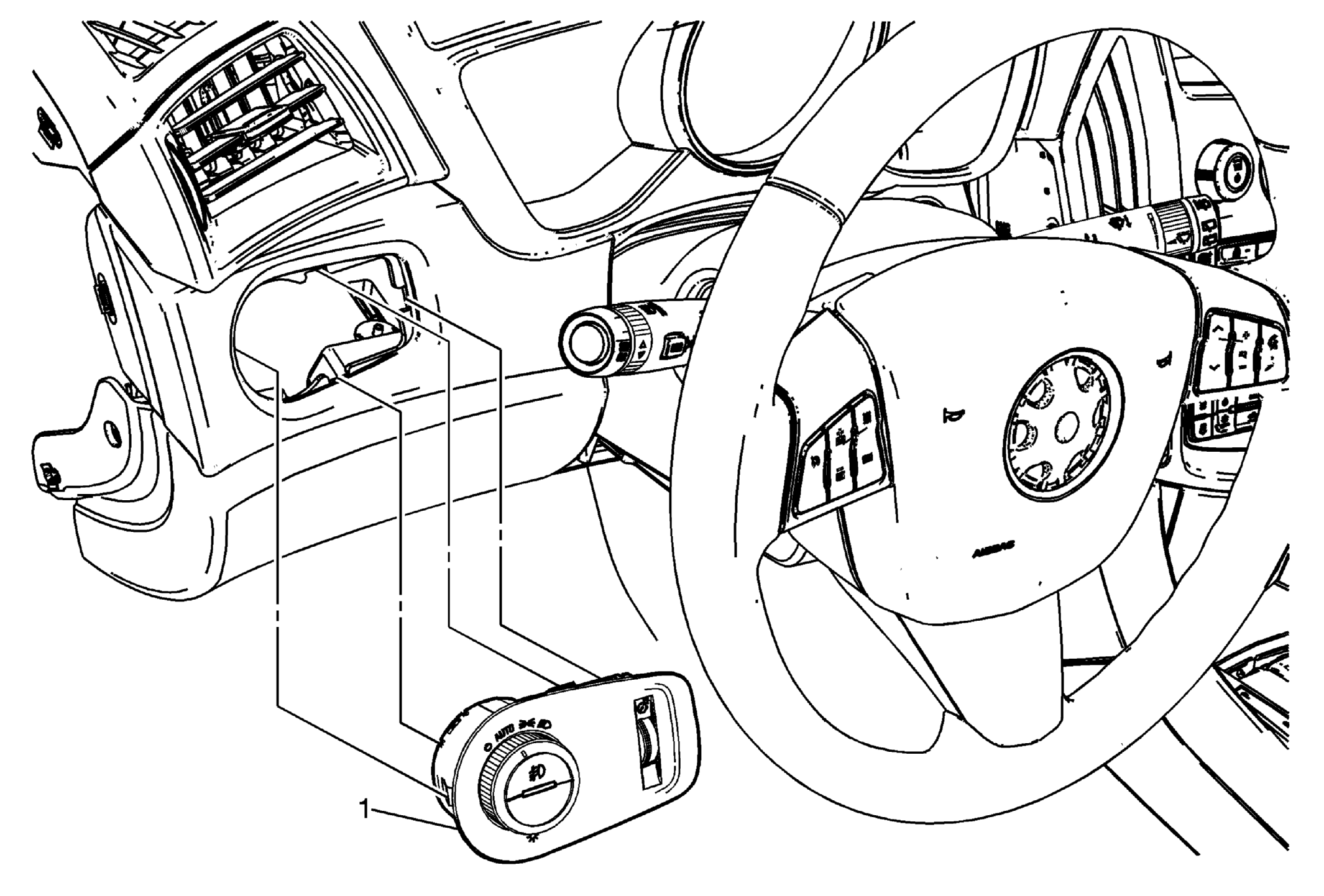

Fig 1: Locating Headlamp Switch
GM2231055Courtesy of GENERAL MOTORS COMPANY
Headlamp Switch Replacement

Callout Component Name
Preliminary Procedure
Remove instrument panel side trim panel. Refer to Instrument Panel Side Trim Panel Replacement .
1 Headlamp Switch

Procedure

  1. Depress tabs to remove the switch assembly from the instrument panel.
  2. Disconnect the electrical connector.
