Dome and Reading Lamp Switch Replacement

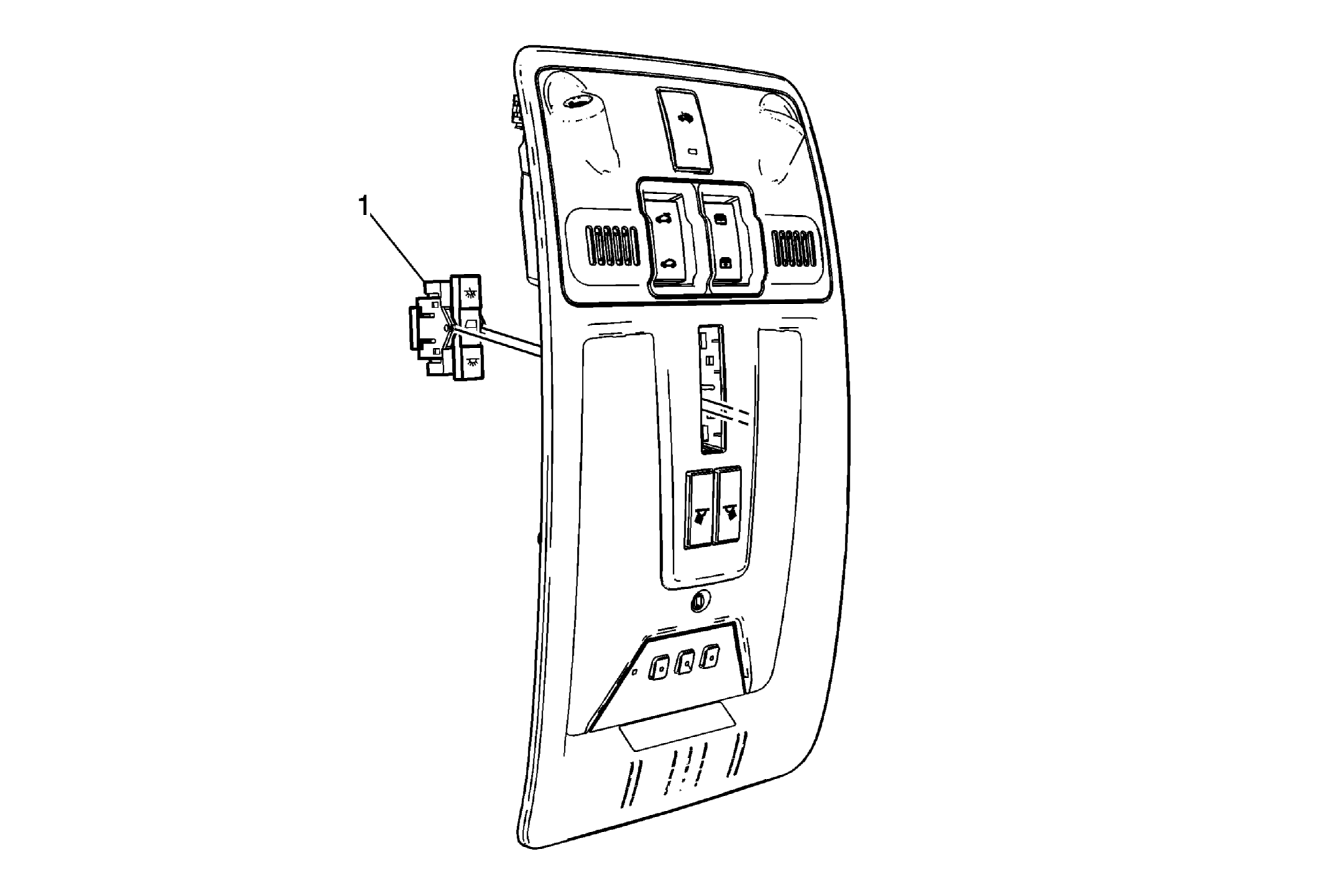

Fig 1: Identifying Dome and Reading Lamp Switch
GM2226962Courtesy of GENERAL MOTORS COMPANY
Dome and Reading Lamp Switch Replacement

Callout Component Name
Preliminary Procedure
Remove the roof console. Refer to Roof Console Replacement .
1 Dome and Reading Lamp Switch

Procedure

  1. Disconnect the electrical connector.
  2. Release the tabs and remove the switch.
