Roof Console Replacement

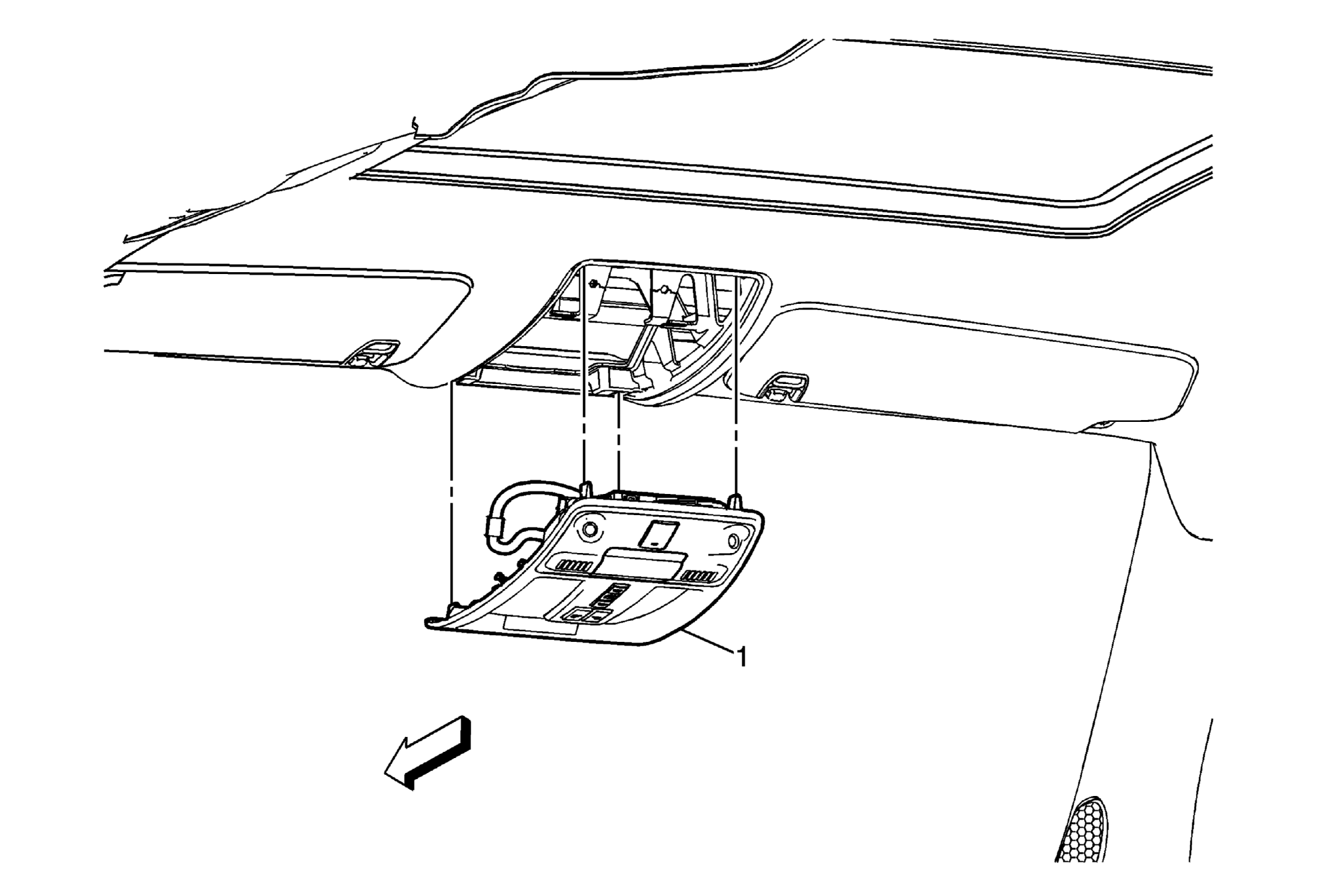

Fig 1: View Of Roof Console
Courtesy of GENERAL MOTORS COMPANY
Roof Console Replacement
Callout
Component Name
1
Roof Console Assembly
Procedures
Grasp the roof console assembly and pull downward to release the retainer clips securing the roof console assembly to the headliner.
Disconnect the electrical connections.
When replacing the roof console assembly, transfer all necessary components.
