Passenger Compartment Harness Routing - Left Rear (2 of 2)

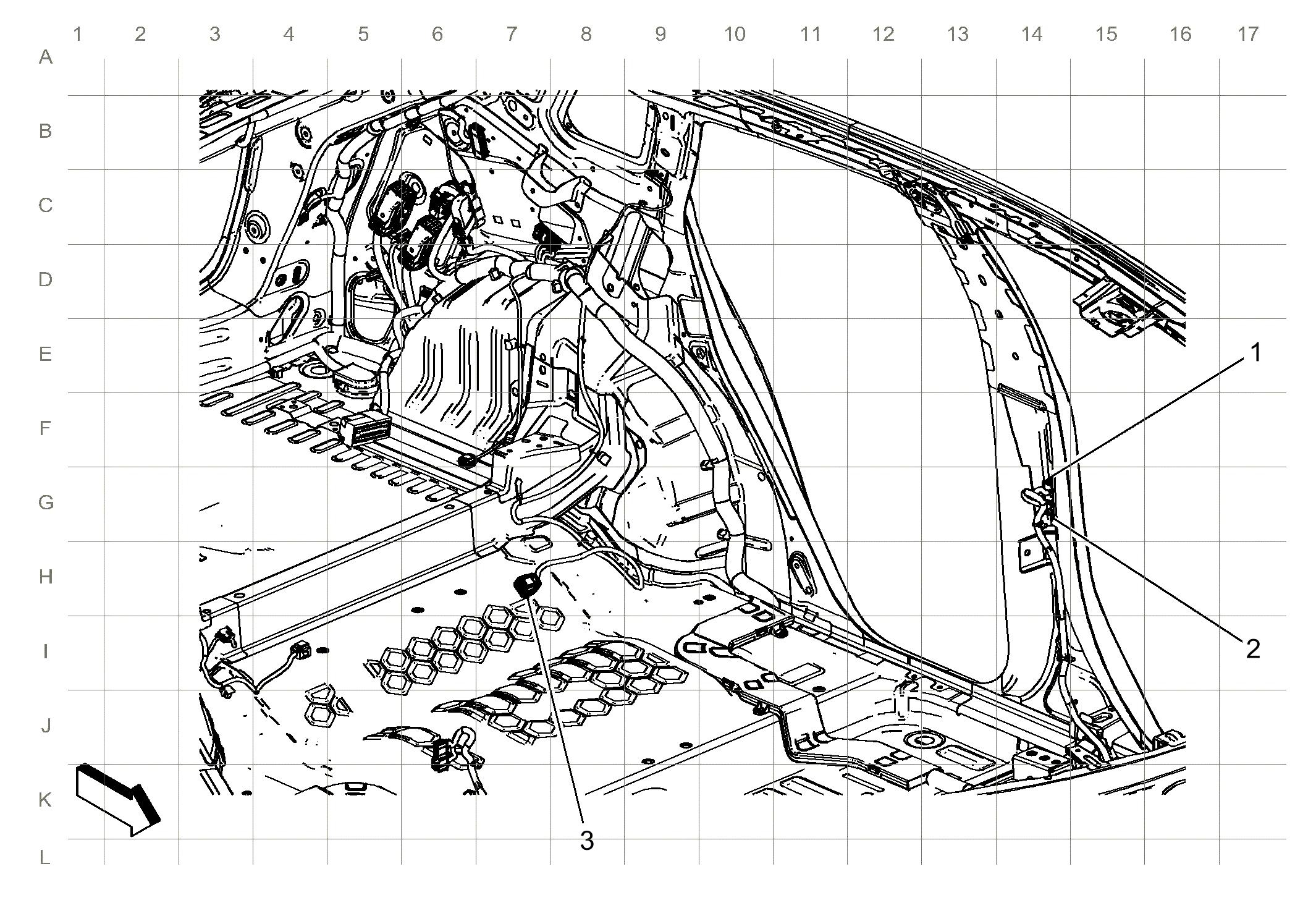

Fig 1: View Of Passenger Compartment Harness Routing Diagram - Left Rear (2 of 2)
GM2298333Courtesy of GENERAL MOTORS COMPANY
Items
1:  X700 X700 Body Harness to Left Rear Door Harness
2:  X700 X700 Body Harness to Left Rear Door Harness
3:  X313 X313 Body Harness to Left Rear Seat Harness
