X700 Body Harness to Left Rear Door Harness
|
|
|

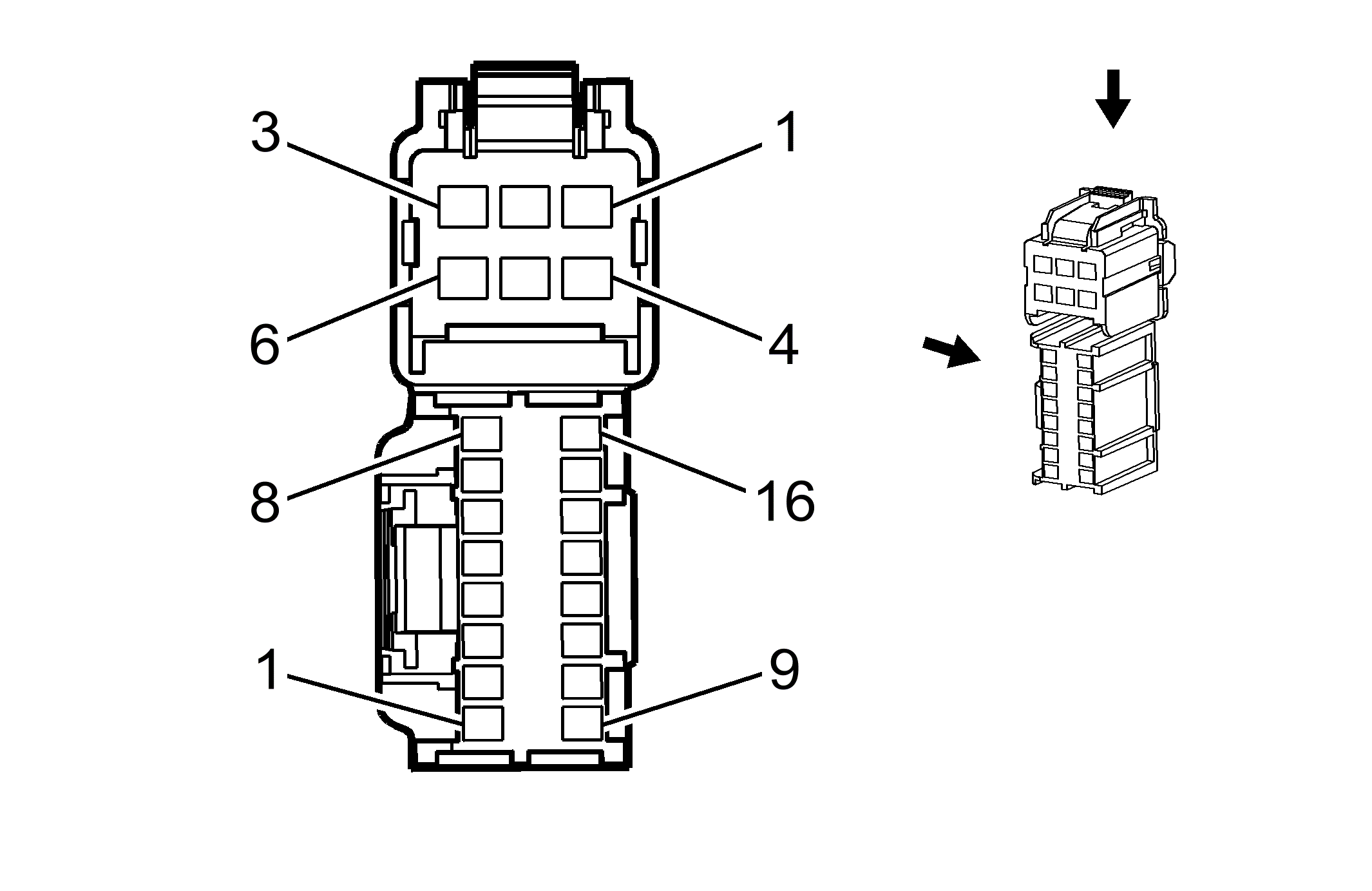

Connector Part Information
- Harness Type: Body
- OEM Connector: 13796274
- Service Connector: 13587181
- Description: 6-Way F 280 GT Series (BK)
- Harness Type: Body
- OEM Connector: 13520382
- Service Connector: 13503876
- Description: 16-Way F GT Flex Beam Technology 150 (BK)
|

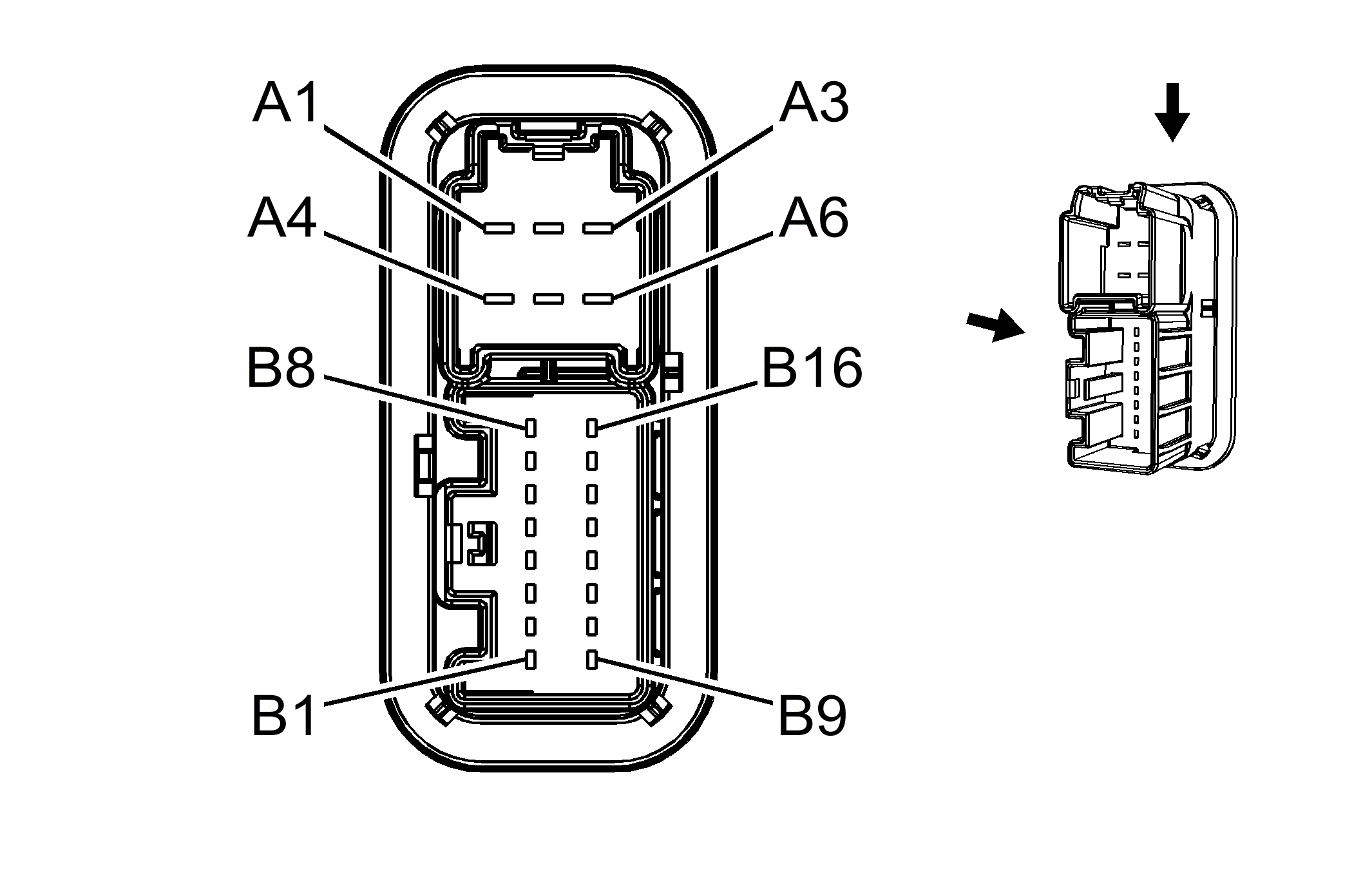

Connector Part Information
- Harness Type: Left Rear Door
- OEM Connector: 13673870
- Service Connector: Service by Harness - See Part Catalog
- Description: 22-Way M 1.5 2.8 Series (L-GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
13575481 |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
| II |
13327131 |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
| III |
Service by Harness - See Part Catalog |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
X700 Body Harness to Left Rear Door Harness
| Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
Function |
Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
| 1 |
2.5 |
RD/D-BU |
1842 |
II |
- |
Battery Positive Voltage |
A1 |
2.5 |
RD/D-BU |
1842 |
III |
- |
| 2 |
2.5 |
BK |
2150 |
II |
- |
Ground |
A2 |
2.5 |
BK |
2150 |
III |
- |
| 3-6 |
- |
- |
- |
- |
- |
Not Occupied |
A3-A6 |
- |
- |
- |
- |
- |
| 1 |
0.75 |
L-GN |
199 |
I |
- |
Left Rear Speaker Output (+) |
B1 |
0.75 |
L-GN |
199 |
III |
- |
| 2 |
0.75 |
L-GN/BK |
116 |
I |
- |
Left Rear Speaker Output (-) |
B2 |
0.75 |
L-GN/BK |
116 |
III |
- |
| 3 |
0.5 |
OG/D-BU |
6620 |
I |
- |
Left Middle Side Impact Sensing Module Signal |
B3 |
0.5 |
OG/D-BU |
6620 |
III |
- |
| 4 |
0.5 |
BK/OG |
6621 |
I |
- |
Left Middle Side Impact Sensing Module Low Reference |
B4 |
0.5 |
BK/OG |
6621 |
III |
- |
| 5 |
0.35 |
L-GN/GY |
6135 |
I |
- |
Local Interconnect Network 4 |
B5 |
0.35 |
L-GN/GY |
6135 |
III |
- |
| 6 |
0.75 |
GY |
295 |
I |
- |
Door Lock Actuator Lock Control |
B6 |
0.75 |
GY |
295 |
III |
- |
| 7 |
0.75 |
BN/YE |
294 |
I |
- |
Door Lock Actuator Unlock Control |
B7 |
0.75 |
BN/YE |
294 |
III |
- |
| 8 |
0.75 |
WH/D-BU |
3266 |
I |
- |
Child Security Lock Motor Control |
B8 |
0.75 |
WH/D-BU |
3266 |
III |
- |
| 9 |
0.35 |
BN/WH |
3269 |
I |
- |
Left Rear Door Lock Status |
B9 |
0.35 |
BN/WH |
3269 |
III |
- |
| 10 |
0.75 |
BN |
5910 |
I |
AF8 |
Global Door Lock |
B10 |
0.75 |
BN |
5910 |
III |
AF8 |
| 11 |
0.35 |
WH/YE |
7557 |
I |
TSQ |
Ambient Lighting |
B11 |
0.35 |
WH/YE |
7557 |
III |
TSQ |
| 12 |
0.35 |
BN/YE |
6157 |
I |
ATH |
Door Handle Switch - Left Rear Signal |
B12 |
0.35 |
BN/YE |
6157 |
III |
ATH |
| 13 |
0.35 |
GY |
157 |
I |
- |
Courtesy Lamp Control |
B13 |
0.35 |
GY |
157 |
III |
- |
| 14-16 |
- |
- |
- |
- |
- |
Not Occupied |
B14-B16 |
- |
- |
- |
- |
- |
