Liftgate Harness Routing - Splices

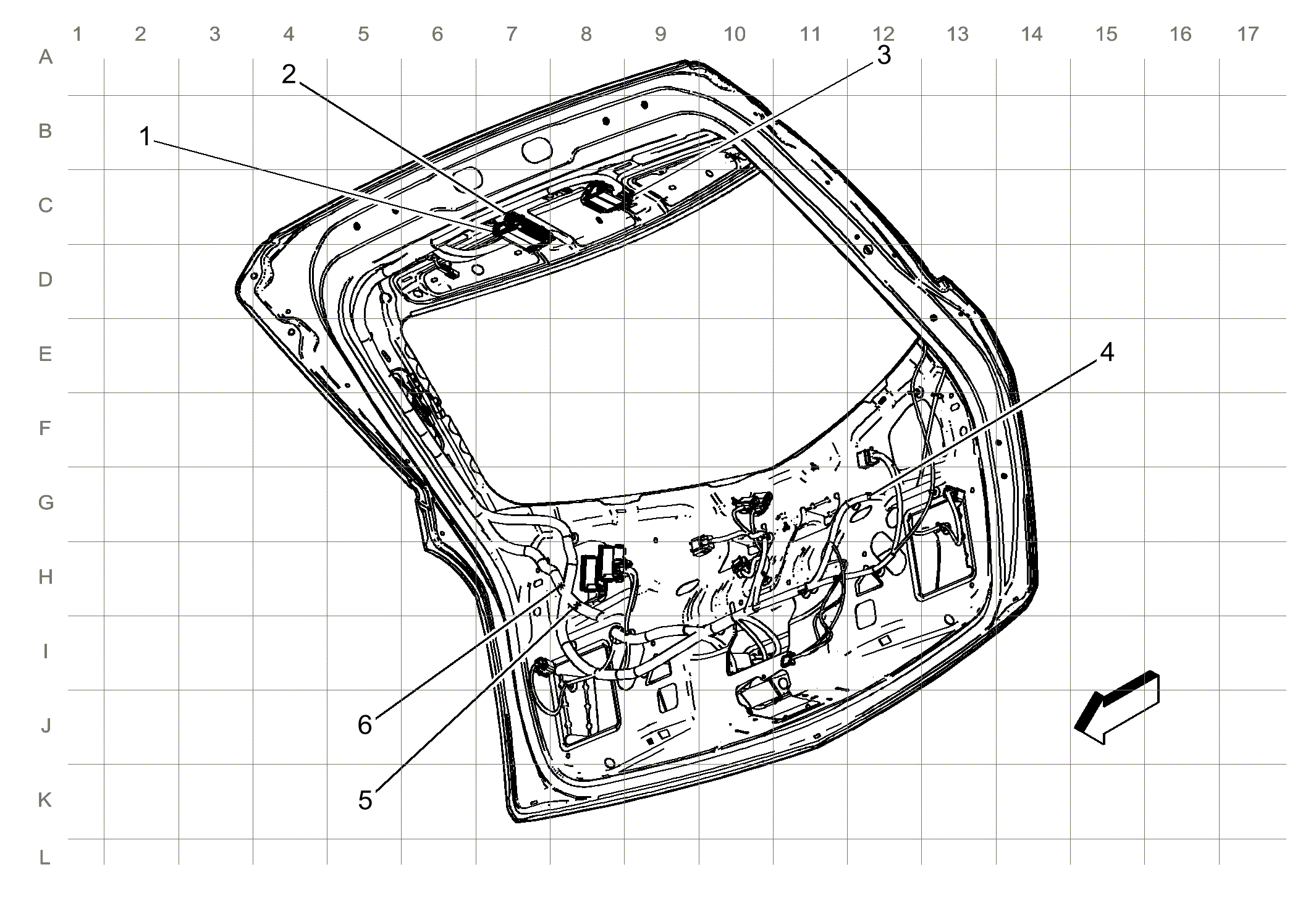

Fig 1: Liftgate Harness Routing Diagram - Splices
GM2298562Courtesy of GENERAL MOTORS COMPANY
Items
1:  X900 X900 Body Harness to Liftgate Harness
2:  X903 X903 Body Harness to Liftgate Harness
3:  J907 (TB5)
4:  J906
5:  J905
