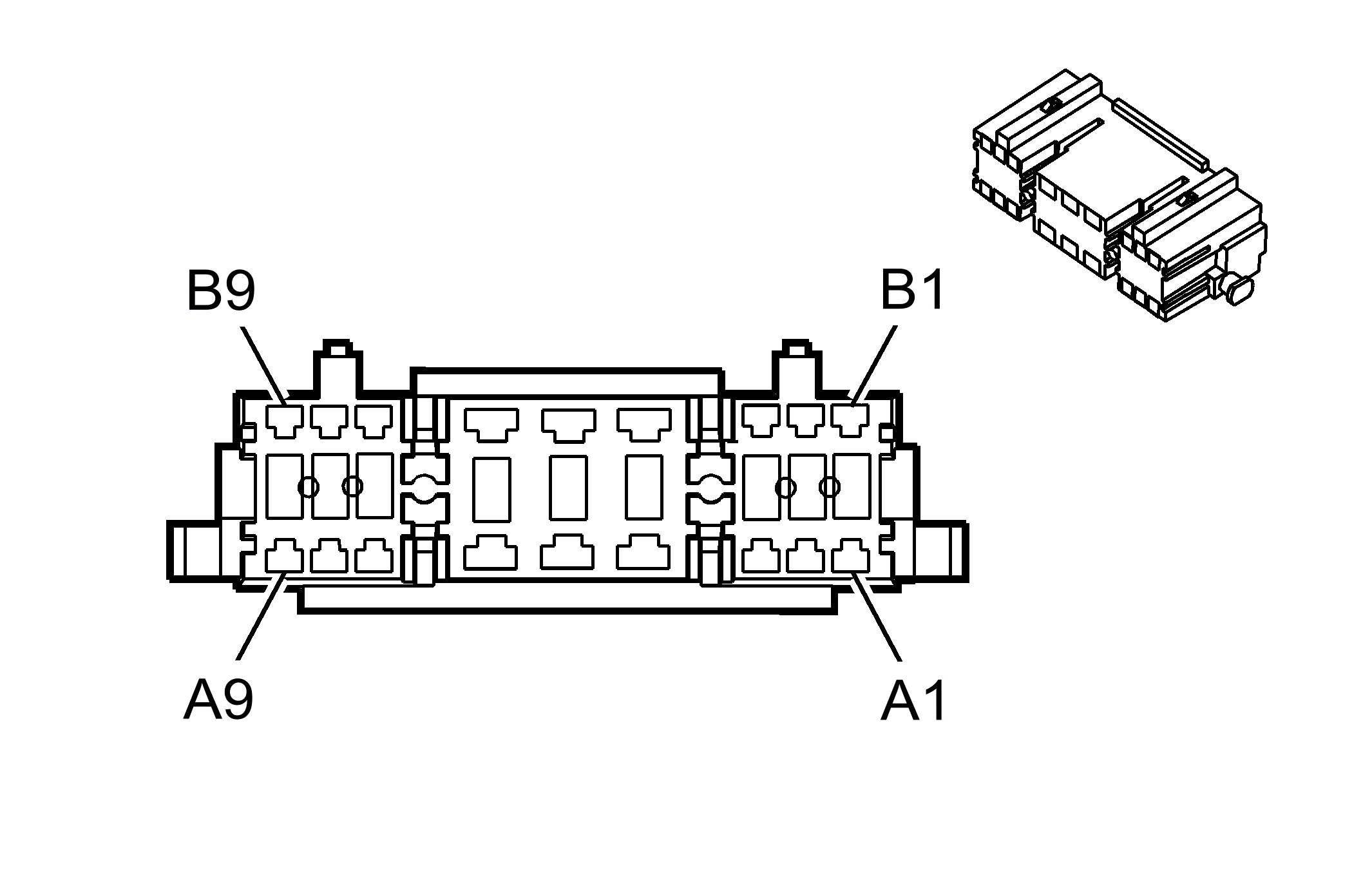

X903 Body Harness to Liftgate Harness
Connector Part Information
|
Connector Part Information
|
Terminal Part Information
| Terminal Type ID | Terminated Lead | Diagnostic Test Probe | Terminal Removal Tool | Service Terminal | Tray | Core Crimp | Insulation Crimp |
|---|---|---|---|---|---|---|---|
| I | 13575492 | J-35616-2A (GY) | J-38125-29 | Not Available | Not Available | Not Available | Not Available |
| II | 13575497 | J-35616-4A (PU) | J-38125-29 | Not Available | Not Available | Not Available | Not Available |
| III | 13575499 | J-35616-4A (PU) | J-38125-29 | Not Available | Not Available | Not Available | Not Available |
| IV | Not Available | J-35616-3 (GY) | Not Available | Not Available | Not Available | Not Available | Not Available |
| V | Not Available | J-35616-5 (PU) | Not Available | Not Available | Not Available | Not Available | Not Available |
X903 Body Harness to Liftgate Harness
| Pin | Size | Color | Circuit | Terminal Type ID | Option | Function | Pin | Size | Color | Circuit | Terminal Type ID | Option |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A1 | 0.35 | VT/L-GN | 1339 | I | UVC | Run/Crank Ignition 1 Voltage | A1 | 0.35 | VT/D-GN | 1339 | IV | UVC |
| A2 | 0.5 | BK/WH | 2151 | I | UVC | Signal Ground | A2 | 0.35 | BK/WH | 2151 | IV | UVC |
| A3 | - | - | - | - | - | Not Occupied | A3 | - | - | - | - | - |
| A4 | 0.35 0.35 |
VT/GY BARE |
1303 3016 |
II | without TB5 TB5 |
Lift Gate Ajar Switch Signal (1) Lift Gate Cinch Latch Motor Drain Wire |
A4 | 1 | VT/GY | 1303 | V | without TB5 |
| A5 | 0.75 2.5 |
D-BU/WH BN |
6128 5790 |
II | without TB5 TB5 |
Rear Closure Unlatch Motor Unlatch Control Lift Gate Cinch Latch Motor Open Control |
A5 | 1 | D-BU/WH | 6128 | V | without TB5 |
| A6 | 2.5 0.35 |
D-BU/GY YE/D-BU |
5791 5797 |
III | TB5 without TB5 |
Lift Gate Cinch Latch Motor Close Control Rear Closure Handle Switch Open Signal |
A6 | 0.35 | YE/D-BU | 5797 | V | without TB5 |
| A7 | - | - | - | - | - | Not Occupied | A7 | - | - | - | - | - |
| A8 | 0.35 | L-GN | 3033 | I | TB5 | Lift Gate Shut Face Switch Signal | A8 | 0.5 | D-GN | 3033 | IV | TB5 |
| A9 | 0.35 | GY/WH | 3034 | I | TB5 | Lift Gate Shut Face Switch LED Control | A9 | 0.5 | GY/WH | 3034 | IV | TB5 |
| B1-B3 | - | - | - | - | - | Not Occupied | B1-B3 | - | - | - | - | - |
| B4 | 0.35 | L-GN/BK | 5512 | II | TB5 | Lift Gate Open | B4 | 2.5 | BK | 5512 | V | TB5 |
| B5 | 0.35 | D-BU/BK | 6000 | II | TB5 | Lift Gate Ajar Switch Signal (2) | B5 | 2.5 | BK | 6000 | V | TB5 |
| B6 | 0.35 | GY | 7000 | II | TB5 | Lift Gate Ajar Switch Signal 3 | B6 | 2.5 | BK | 7000 | V | TB5 |
| B7 | 0.35 | BARE | 6974 | I | UVC | Camera Drain Wire | B7 | 0.35 | BARE | 6974 | IV | UVC |
| B8 | 0.35 | GY/YE | 6972 | I | UVC | Camera Signal #2 + | B8 | 0.35 | GY/YE | 6972 | IV | UVC |
| B9 | 0.35 | WH/D-BU | 6973 | I | UVC | Camera Signal #2 | B9 | 0.35 | WH/D-BU | 6973 | IV | UVC |
